ASRock DeskMini X600 Barebones AMD Socket AM5 Mini PC supporting Ryzen 8000/7000 Series Processors up to 65W; 2.5Gb LAN; HDMI, DisplayPort, VGA; M.2 PCIe Gen5x5 and M.2 PCIe Gen4x4; 2x 2.5in SATA; Up to 96GB DDR5 RAM; Optional WiFi.
| ASRock DeskMini X600 | |
| £226.80 inc. VAT | |
| IN STOCK (Checked 09:37) |
Fully Assembled Systems and DIY Kits:
Tiny under 2 litre ASRock DeskMini X600 Barebones Mini PC featuring X600M-STX Mini-STX Motherboard with AMD X600 chipset. Supports Ryzen 8000/7000 Series Processors up to 65W TDP. Up to 96GB DDR5 SODIMM Memory support; 2.5Gbps LAN; 1x PCIe Gen5x4 M.2 Type 2280 Slot and 1x PCIe Gen4x4 M.2 Type 2280 Slot; 2x 2.5in SATA 6Gb Hard Drive Bays with support for RAID 0 and 1; 4K/120Hz HDMI, 4K/120Hz DisplayPort & VGA Outputs (Triple Monitor support); Type-E M.2 Wi-Fi Module support.
This is a Barebones unit. To complete your system a processor, memory and storage will be required. Please use our build link to choose compatible items.
Suitable Processors: The Deskmini X600 requires a compatible AMD AM5 processor with on-board graphics, and a TDP up to 65W. Some retail processors also include heatsinks but check the heatsink height. A heatsink is included with the X600 but the Noctua NH-L9a and Alucia H4A are excellent alternatives. As a rule of thumb, 8000 series processors have more powerful 3D graphics than 7000 series but please check benchmarks.
Storage Bays: 1x PCIe Gen5x4 M.2 Type 2280 Slot and 1x PCIe Gen4x4 M.2 Type 2280 Slot (Upper slot supports heatsinks, lower slot does not due to location on underside of board). 2x SATA 6Gb/s 2.5 inch 7mm/9.5mm Hard Drive Bays with RAID 0 and 1 support.
Expansion: 1x M.2 Socket (Key E) supports Type 2230 WiFi/BT module.

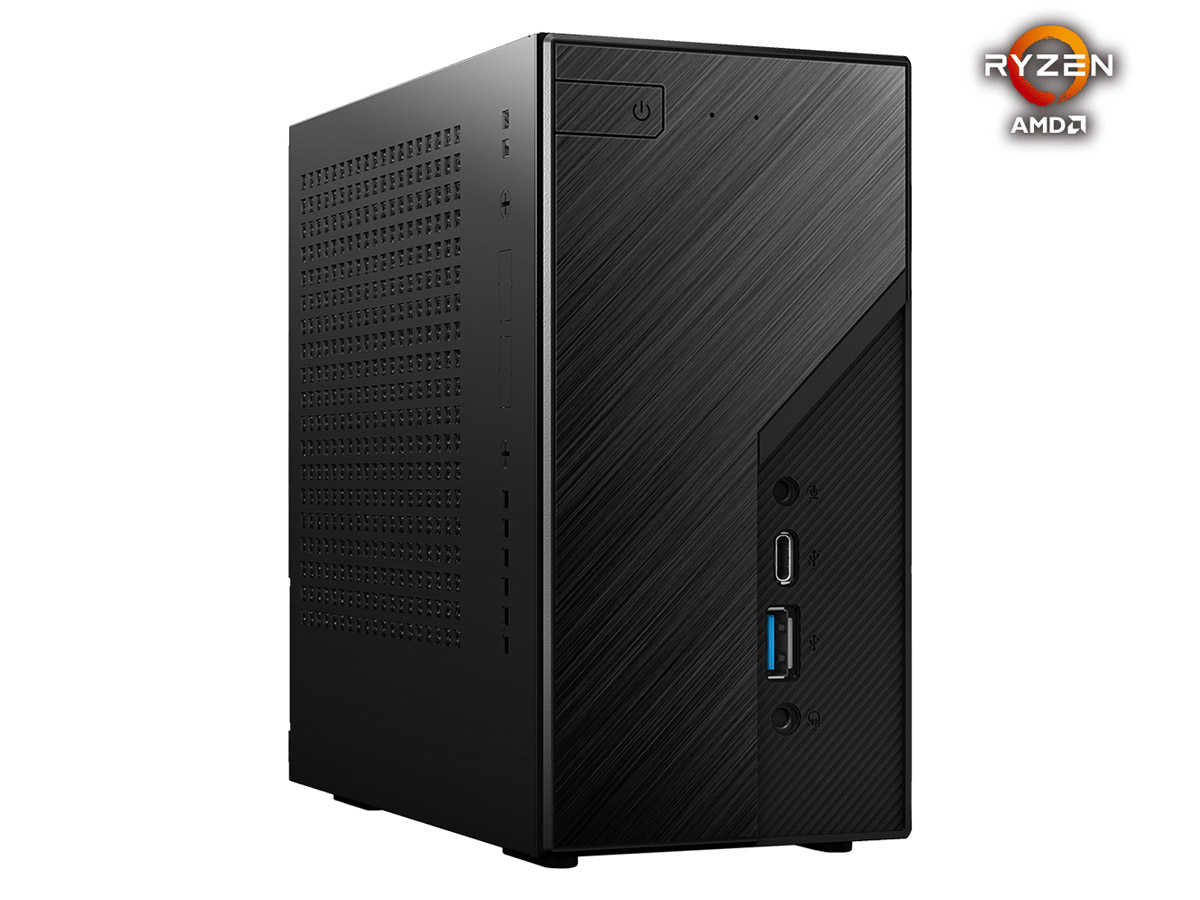

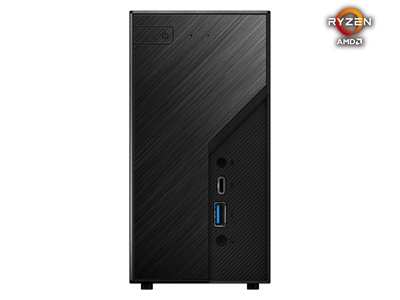

Front Panel: 1x Headphone Jack; 1x USB 3.2 Gen1 Type-A Port; 1x USB 3.2 Gen1 Type-C Port; 1x Microphone Jack.

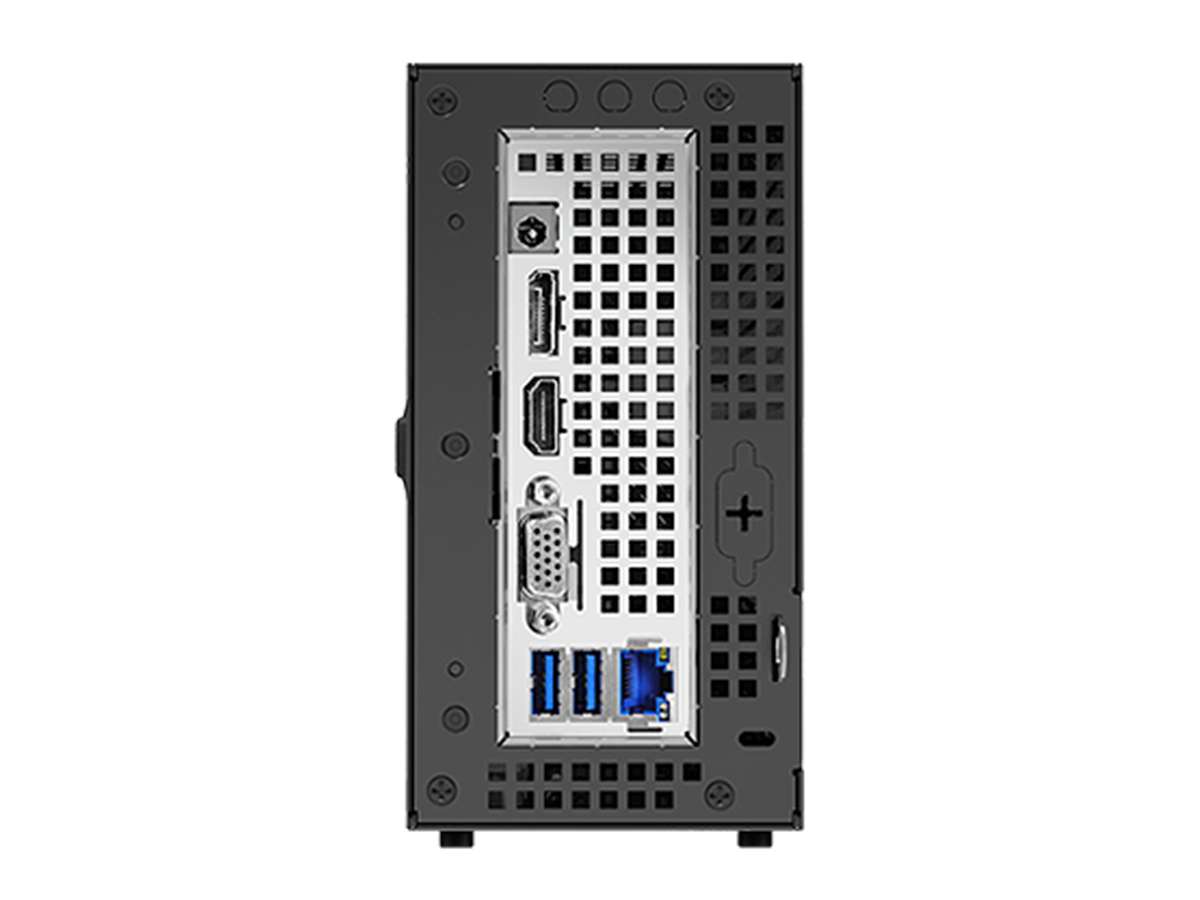

Rear Panel: 1x DC-In Jack (120W 19V AC Adapter provided); 1x VGA Port(max 1920x1200 @ 60Hz); 1x HDMI Port (max 4096x2160 @ 120Hz); 1x DisplayPort 1.4 (max 4096x2304 @ 120Hz); 2x USB 3.2 Gen1 Type-A Ports; 1x Realtek RTL8125BG 2.5Gbps LAN Port.
Board Connectors: 1x Chassis Intrusion Header; 2x 4-pin CPU Fan Connectors; 1x Front Panel Header; 1x USB 2.0 Header supporting 2x USB 2.0 ports; 1x Audio Header; 1 x 4-pin Internal Speaker Header.
Cooling: A basic AMD AM5 Cooler is included measuring 77 x 68 x 45 mm with 1950-3500 RPM fan speed. The DeskMini X600 supports standard AMD AM5 CPU Coolers up to 46mm high (included with some retail APU packages, or can be found here)
Power Supply: External 120W 19V power adapter connects to DC-In Jack.
Package Contents*: DeskMini X600 Barebones System with pre-installed X600M-STX Mini-STX Motherboard; 2x SATA Data/Power Cables; AM5 Cooler; 120W AC Adapter; M.2 Screw Pack.
Drivers: Windows 10 64-bit and Windows 11 64-bit drivers available.
Memory: The DeskMini X600 supports up to 96GB DDR5 memory up to 6400MHz, on 2x 48GB DDR5 SODIMMs. Memory purchased from this page or the configurator page is guaranteed to be compatible.
Measurements: 155 x 155 x 80mm (W x D x H); Volume: 1.92 litres.
| Specifications | ||
|---|---|---|
| Model | ASRock DeskMini X600 | |
| Processor Socket | AMD AM5 | |
| Cooling | ||
| Fanless | No | |
| Operating Temp | 0℃ - 40℃ | |
| Memory | ||
| Maximum | 96GB | |
| Sockets | 2x SODIMM | |
| Type | DDR5 | 6400MHz, 6000MHz, 5600MHz, 5200MHz, 4800MHz |
| Graphics | ||
| Chipset | AMD Radeon Vega Series in Ryzen Series and AMD Radeon R-Series in A-series APU | |
| Displays | 3 | |
| Outputs | 1x DisplayPort (1.4) | 3840x2160 @ 120Hz max res. |
| 1x HDMI | 3840x2160 @ 120Hz max res. | |
| 1x VGA | 1920x1200 @ 60Hz max res. | |
| Audio | ||
| Chipset | ALC233 | Supports 2.1 Channel audio |
| Connectors | 1x 3.5mm Microphone 1x 3.5mm Audio Jack | (Front) (Front) |
| Storage | ||
| Bays | 4 | |
| Types | 1x M.2 2280 Slot up to PCIe 4.0 x4 | |
| 1x M.2 2280 Slot up to PCIe 5.0 x4 | ||
| Type | 2x 2.5in HDD/SSD | 9.5mm max height |
| Network | ||
| LAN Ports | 1 | |
| Type | Realtek Dragon RTL8125BG 2.5Gbps | |
| USB | ||
| Connectors | 4 | |
| Type | 2x USB 3.2 Gen1 (5Gb/s) Type A | (Rear) |
| 1x USB 3.2 Gen1 (5Gb/s) Type A | (Front) | |
| 1x USB 3.2 Gen1 (5Gb/s) Type C | (Front) | |
| Expansion | ||
| M.2 WiFi | 1x M.2 Type-E 2230 slot for WiFi/BT | Unpopulated |
| Power Supply | ||
| Type | External | |
| Input | 110-240 AC | C6 Power Connector |
| Output | 19V DC | |
| Power | 120W | |
| Accessories | ||
| Included |
|
|
| Driver Support | ||
| OS | Windows 10 64-bit
Windows 11 64-bit |
|
| Dimensions | ||
| W x D x H | 155 x 155 x 80 mm | |
| Volume | 1.92 litres | |
| Manufacturer's Warranty | ||
| Duration | 12 months | |
