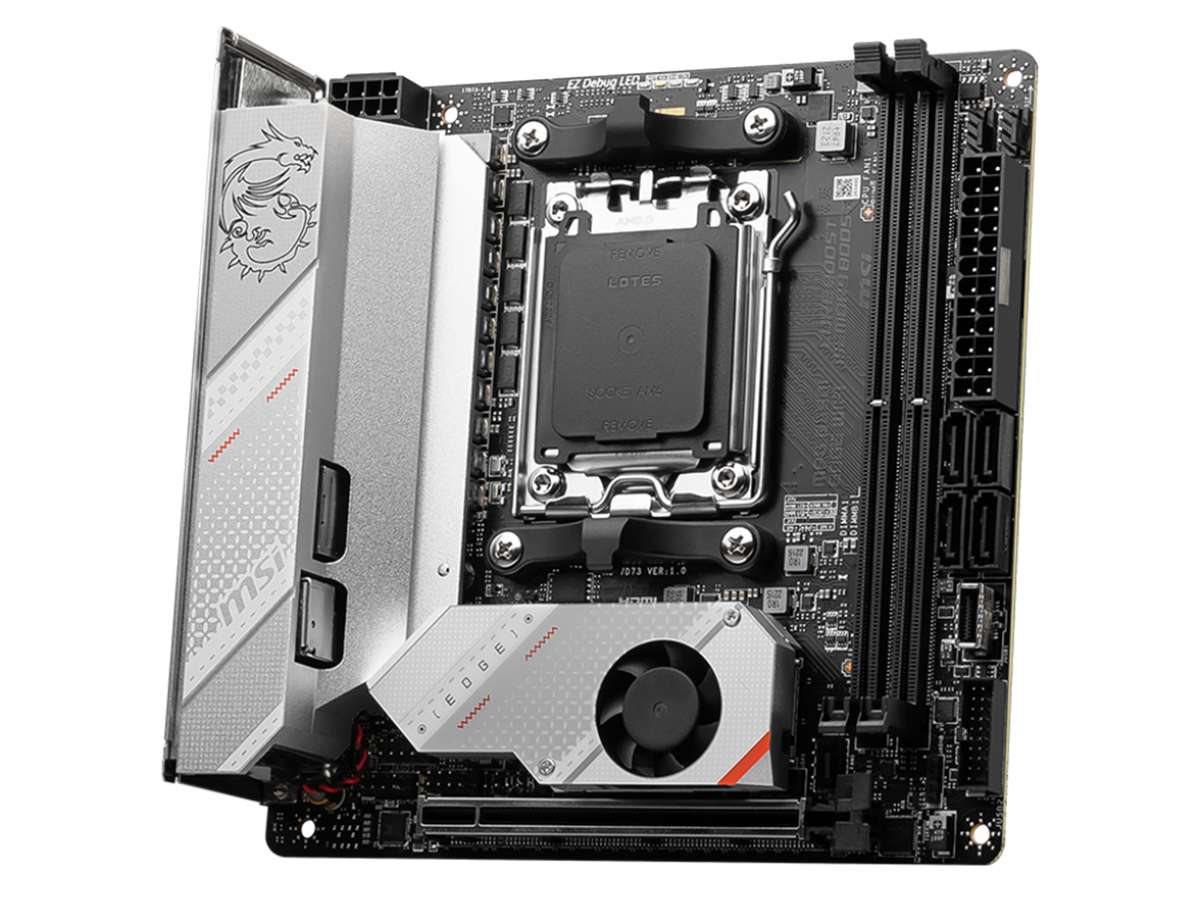

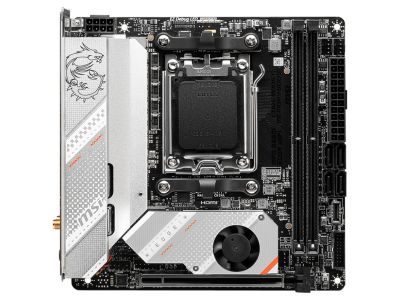

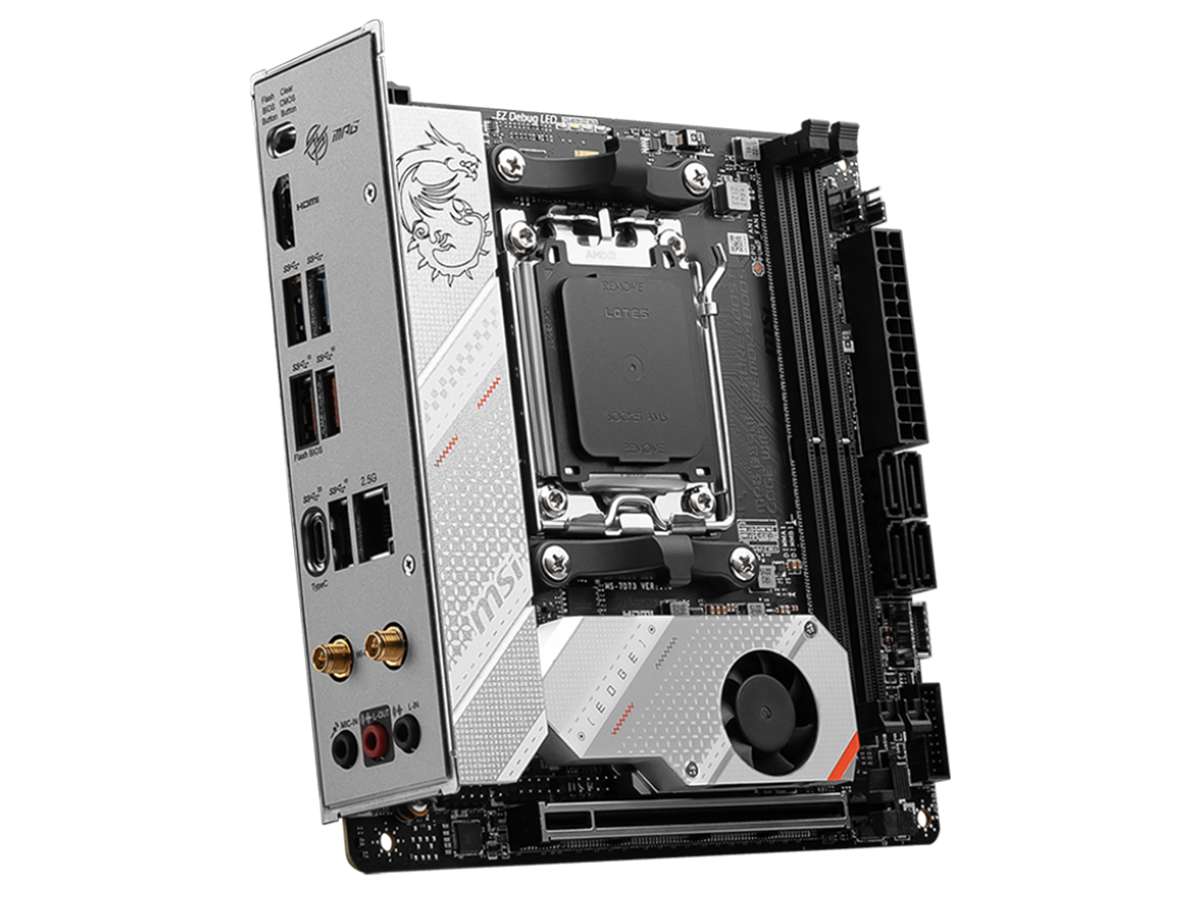

MSI MPG B650I EDGE WIFI Mini-ITX Board with AMD Socket AM5 (Ryzen 7xxx, 8xxx) CPU Support, Up to 128GB DDR5 RAM, 4K@120Hz HDMI 2.1 FRL, 2x PCIe4.0 x4 M.2, 4x SATA 6Gb/s with RAID, WiFi 6E 802.11ax, 2.5Gb LAN, PCI-E x16 4.0, USB 3.2 inc Type-C

MSI MPG B650I EDGE WIFI Mini-ITX board with AMD B650E Chipset, supporting AMD Socket AM5 Ryzen 7000 and 8000* series CPUs and up to 96GB DDR5 memory.

Up to 128GB of DDR5 RAM; 2.5Gb Realtek LAN; 4x SATA 6Gb/s (with RAID); 2x Type 2260/2280 PCIe4.0 x4 M.2 Slots (with RAID); 4K @ 120GHz HDMI 2.1 FRL.

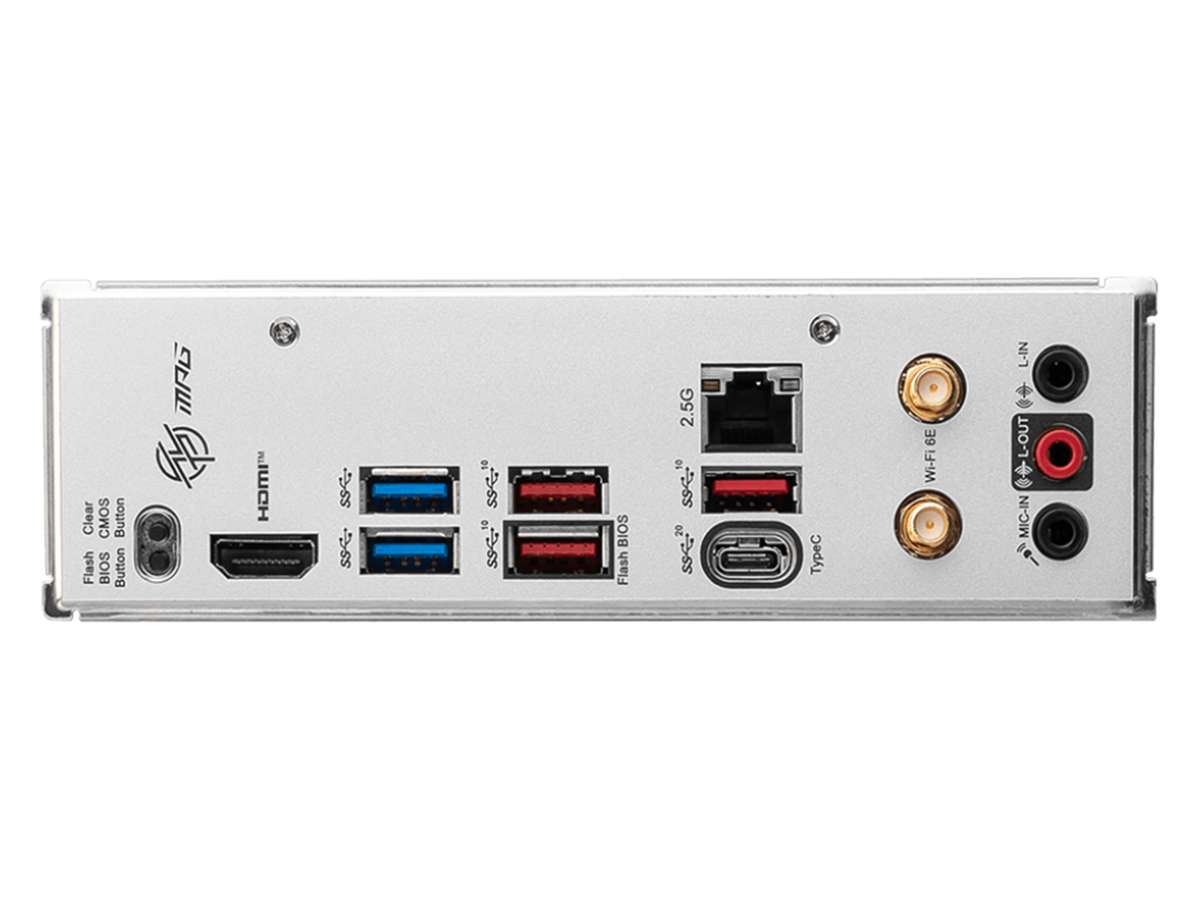

Rear Panel Connectors: Clear CMOS Button; Flash BIOS Button (update BIOS without CPU or RAM when system is off); 1x HDMI port (supports up to 4096x2160 @ 120Hz); 2x USB 3.2 Gen1 (5 Gbps) Type-A ports; 3x USB 3.2 Gen2 (10 Gbps) Type-A ports; 1x Realtek 8125BG 2.5Gb RJ45 LAN Port; 1x USB 3.2 Gen2x2 (20 Gbps) Type-C port; 2x SMA Antenna Connectors; 3x 3.5mm Audio Jacks.

Headers and Jumpers: 1x Front Panel Header; 1x Front Panel Audio Header; 1x Buzzer/Speaker Header; 1x Addressable RGB Gen2 LED Connector (3pin, 5V, for RGB LED Fans & LED Strips - JARGB Extension Cable provided); 1x Chassis Intrusion Header; 1x USB 2.0 Header (supports 2 ports); 1x USB 3.2 Gen1 Header (supports 2 ports); 1x USB 3.2 Gen1 Type-C Header; Safe Boot Jumper (boots with default settings); EZ Debug LED (debug status of CPU, RAM, GPU, BOOT).

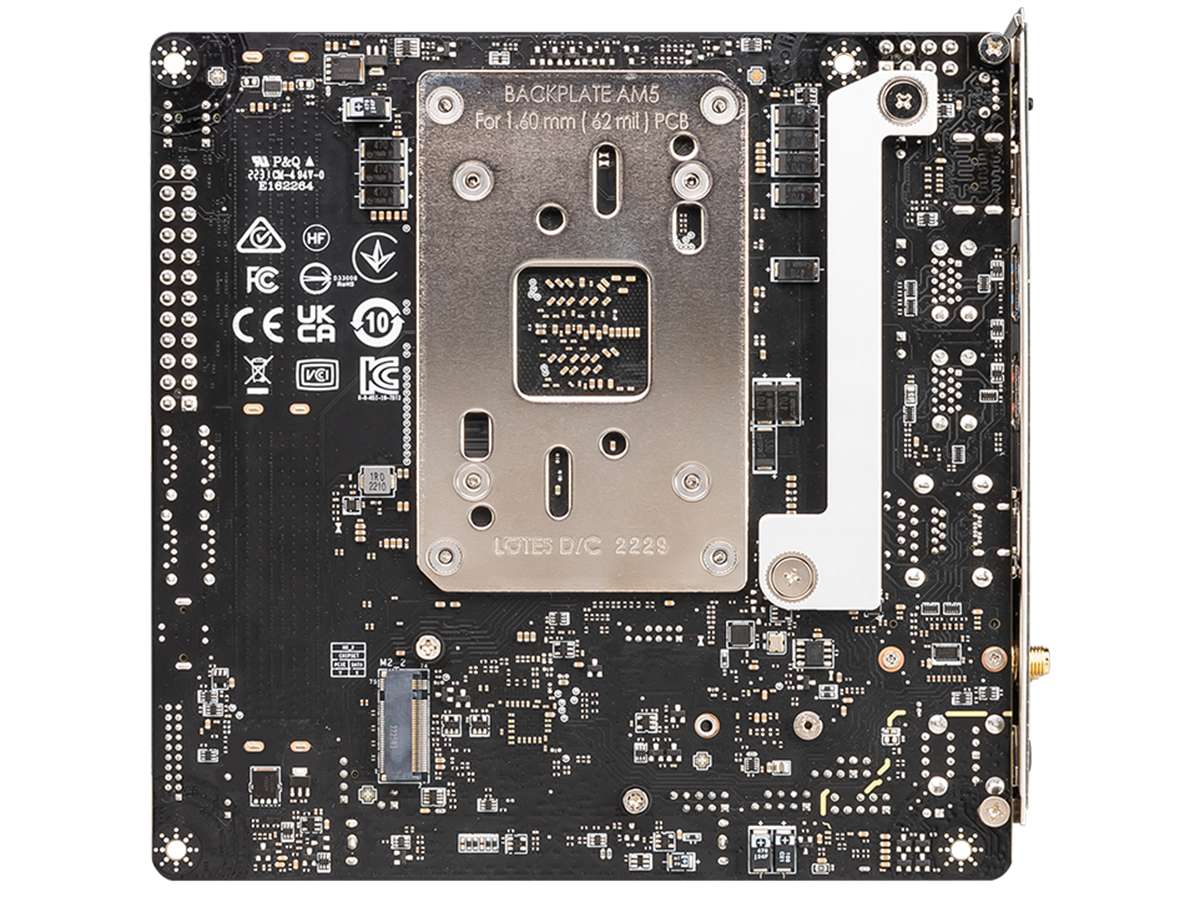

Storage Connectors: 2x Type 2260/2280 M.2 connectors supports up to PCIe4.0 x4 SSDs (1 connector on underside of motherboard); 4x SATA 6Gb/s connectors.

Board Power: 1x 24-pin ATX main power connector; 1x 8-pin ATX 12V power connector; Direct 8+2+1 VRM Poer.

Cooling: 1x 4-pin CPU Fan Header (12V, 3A); 1x 4-pin System/Pump Fan Headers (12V, 3A; 1x 4-pin System Fan Headers (12V, 2A.

*8000G CPU Support: To use an 8000G CPU (8500G, 8600G, 8700G), first update the BIOS to at least version 7D73v16 using the Flash BIOS button (no CPU or memory required).

Updating the BIOS with M-Flash: Download the latest BIOS from here, unzip and rename the largest file to MSI.ROM and copy it onto a blank FAT32 formatted USB stick. Put the stick into the red USB slot marked 'FLASH BIOS', power up and press the Flash BIOS Button. Wait ~5 minutes until the red light stops flashing and reboot.

Integrated Graphics: Dependent on the processor model, a graphics card may be required if the CPU does not have integrated graphics.

Audio: High Definition Realtek ALC4080 Audio CODEC: 2/4/5.1/7.1-channels.

Board Expansion: 1x PCI Express 4.0 x16 slot (supports PCIe 4.0 x8 with Ryzen 8600G and 8700G, PCIe 4.0 x4 with Ryzen 8500G)

Not suitable for 1U or low profile chassis: Due to the dimensions and heatsink design, this board may not fit in 1U or low profile chassis.

Wireless LAN: AMD WIFI 6E with WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands; Bluetooth 5.2

Windows Compatibility: The MPG B650I EDGE WIFI is compatible with Windows 11 64-bit and Windows 10 64-bit.

Downloads: Manual (PDF), BIOS, Documentation and Drivers

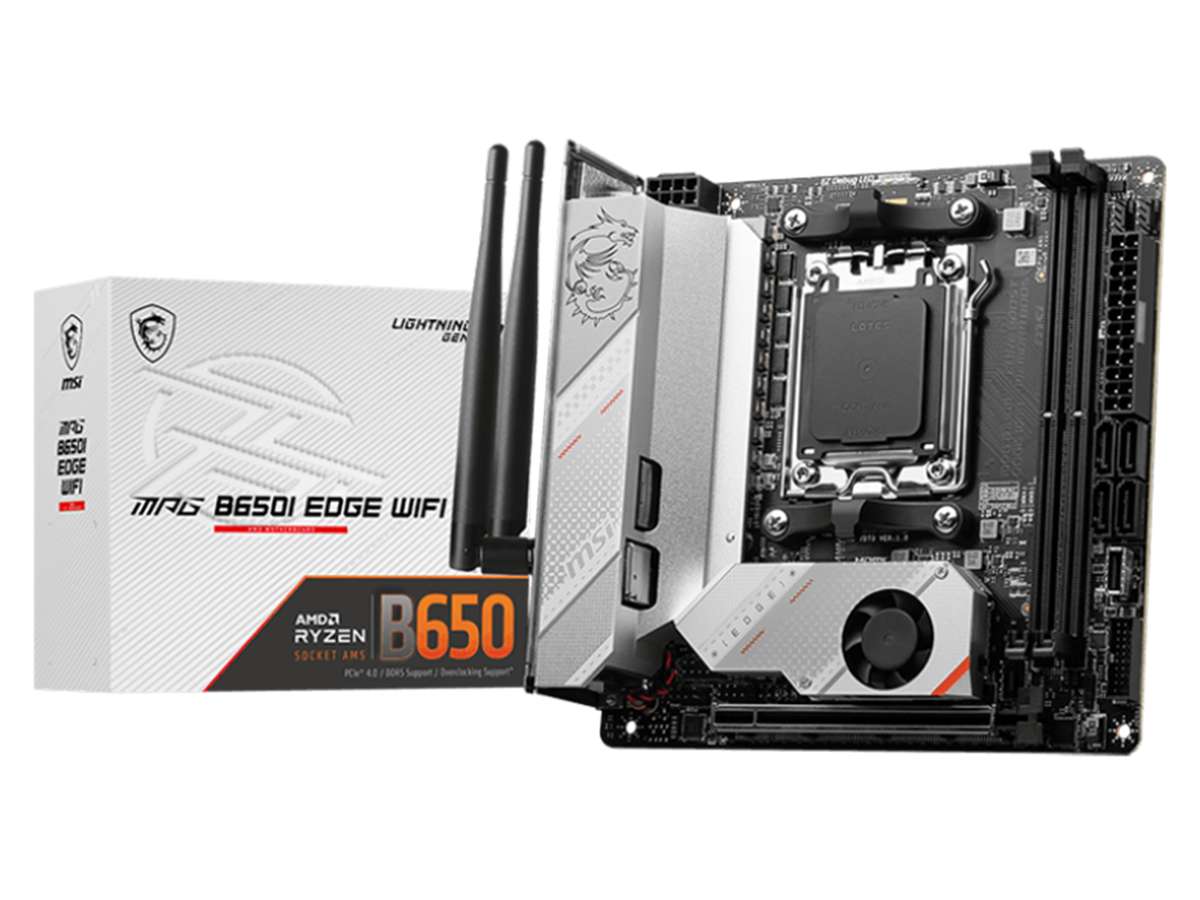

Package Contents: Motherboard, Quick Install Guide, 1x WiFi Antenna Set, 2x SATA 6Gb/s cables, 1x JARGB extension cable, 3x M.2 screws.

Suitable Memory: The MPG B650I EDGE WIFI supports up to 128GB of dual-channel DDR5 memory (64GB per DIMM slot) running from 4800MHz up to 7200Hz (overclocked). For memory support and operation, refer to MSI's official memory support list. We will always provide compatible memory if purchased directly from this motherboard page.
