picoPSU-120 WI 12-25V Wide Input Plug-in DC-DC ATX PSU (192W AC Adapter Compatible)
| picoPSU-120 WI 12-25V | |
| £54.00 inc. VAT | |
| IN STOCK (Checked 10:49) |

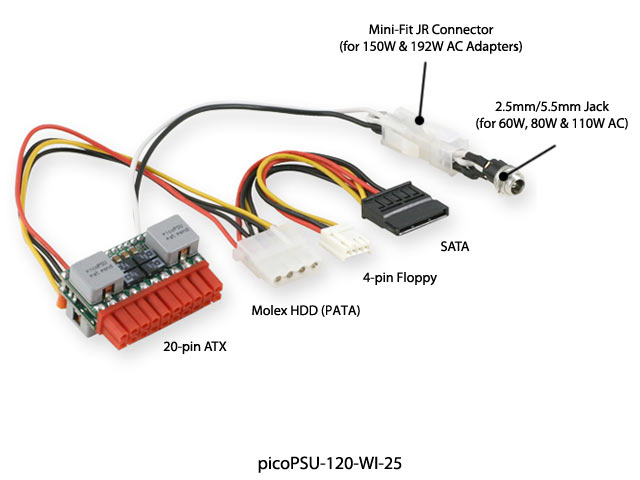

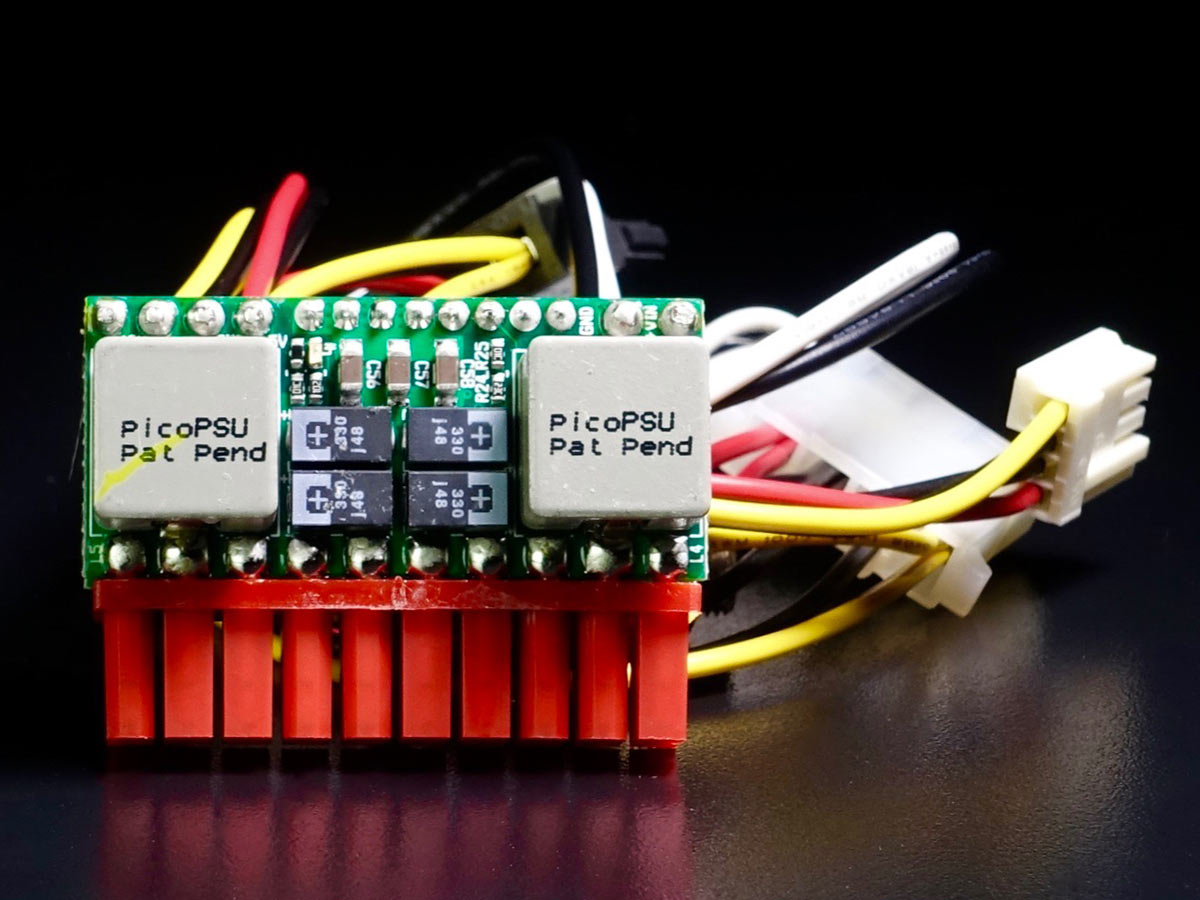

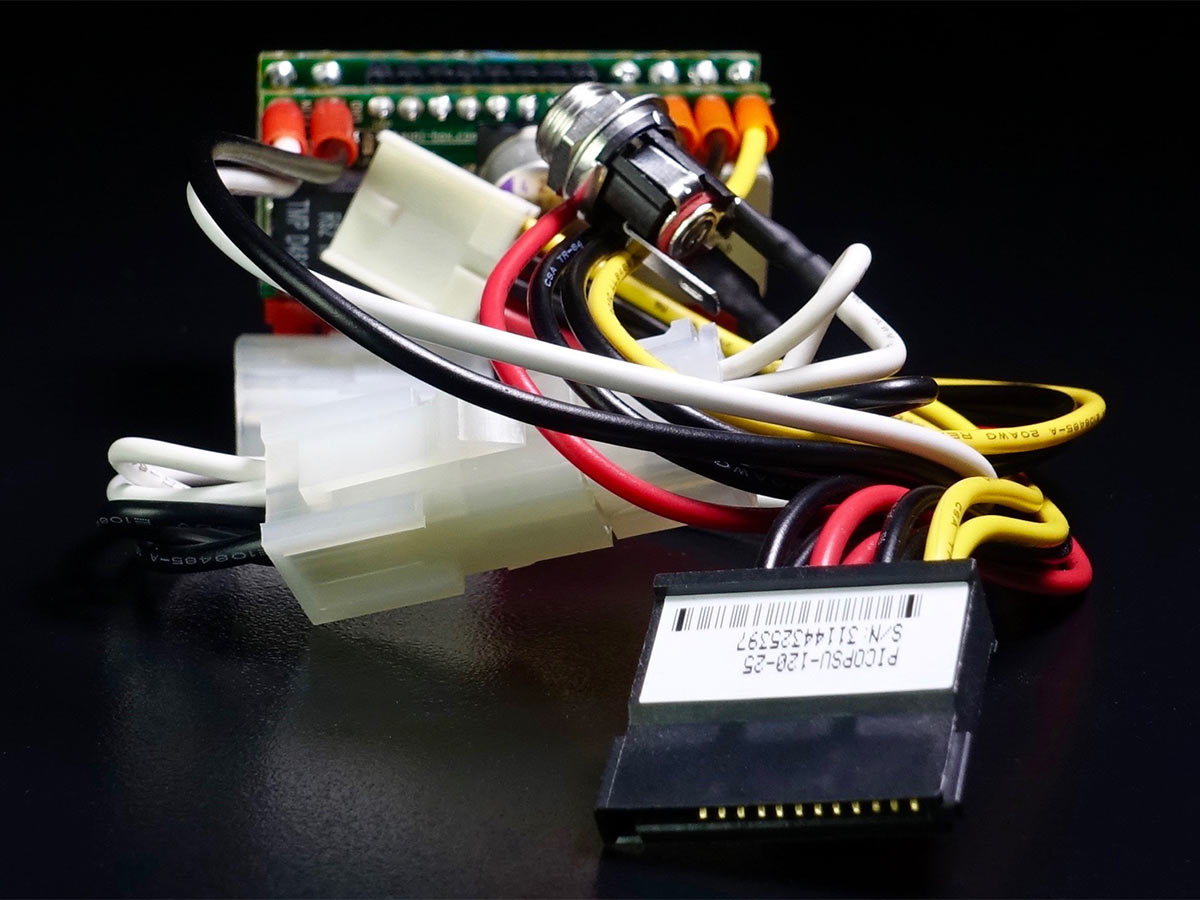

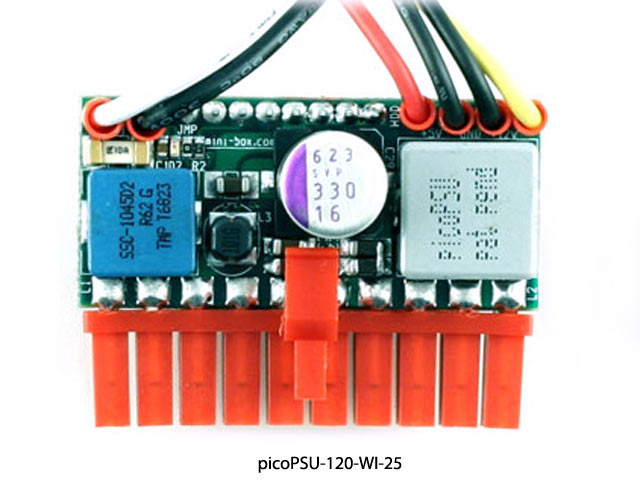

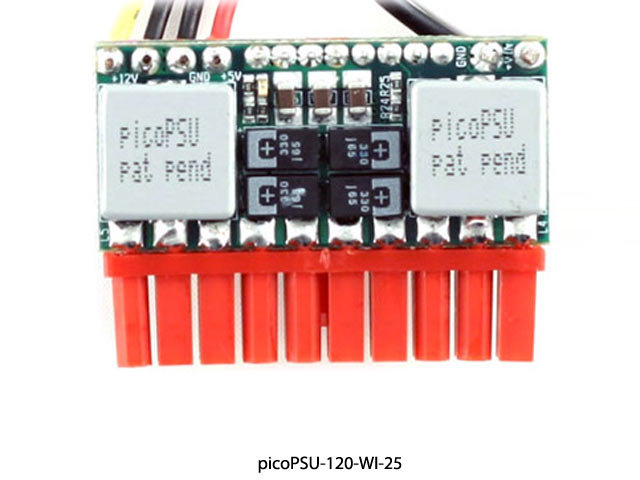

The picoPSU-120-WI-25 plugs directly into a motherboard ATX connector and measures just 43 x 23 x 32 mm - about the size of two AA batteries. The picoPSU-120-WI-25 generates up to 80 Watts of power (120 Watts peak) from a regulated 12-25V DC supply, at over 94% efficiency. An attached cable harness provides:
- 20pin ATX Connector
- SATA Power Connector
- Molex (ATA) HDD Power
- Molex Floppy Power
Compatibility: The picoPSU-120-WI-25 can power all our Mini-ITX boards with low power Celeron but also earlier Geode, C3, C7, Atom and Fusion processors. Additionally some lower power consumption Mini-ITX boards with Intel and AMD processors up to around 45W TDP can be powered. More powerful picoPSUs offer more headroom for additional devices. If you are considering using with a board not on our site, please email us to check compatibility.
Compatible AC Adapters:
*The 2.5/5.5mm Jack can be replaced with the more robust 4-pin Mini-DIN connector that is supplied with our 150W and 192W AC Adapters.
Adding more SATA drives: The picoPSU-120-WI-25 has one SATA connector and a Molex connector. To power more SATA drives use a Molex to SATA or 2x SATA cable.
P4 Power Connectors: If your board has a 4-pin 12V P4 power connector, you will need to use a Molex to 12V P4 Power Cable, or a different picoPSU.
Regulated Voltage Required: A stable and regulated voltage of between 12 and 25 Volts is required to use this picoPSU, connected by a standard 2.5mm /5.5mm DC Jack or Mini-Fit JR connector. Our 12V AC Adapters are suitable for this picoPSU. Please read their product listings to determine which is most suitable for you.
Long Life: The picoPSU-120-WI-25 is marked for long life production and is guaranteed to have a life cycle of 5 years or more.
Notes: Not suitable for use with batteries or unregulated power sources.
| Specifications | ||
|---|---|---|
| Brand | Pico | |
| Model | picoPSU-120 WI 12-25V | |
| Form Factor | ATX picoPSU | |
| Power Supply | ||
| Output Power | 80W | |
| Peak Power | 120W | |
| Input | ||
| Input Voltage | 12-25V | |
| Connectors | 2.5/5.5mm | 295mm |
| Output | ||
| Connectors | 20-pin ATX | |
| ATA HDD Power | 180mm | |
| SATA Power | 275mm | |
| Floppy Power | 370mm | |
| Cooling | ||
| Operating Temperature | -40℃ - 65℃ | |
| Storage Temperature | -40℃ - 90℃ | |
| Type | Fanless | |
| Dimensions | ||
| W x L x H | 43 x 23 x 32 mm | |
| Weight | 70g | |
| Manufacturer's Warranty | ||
| Duration | Limited 12 months | |
