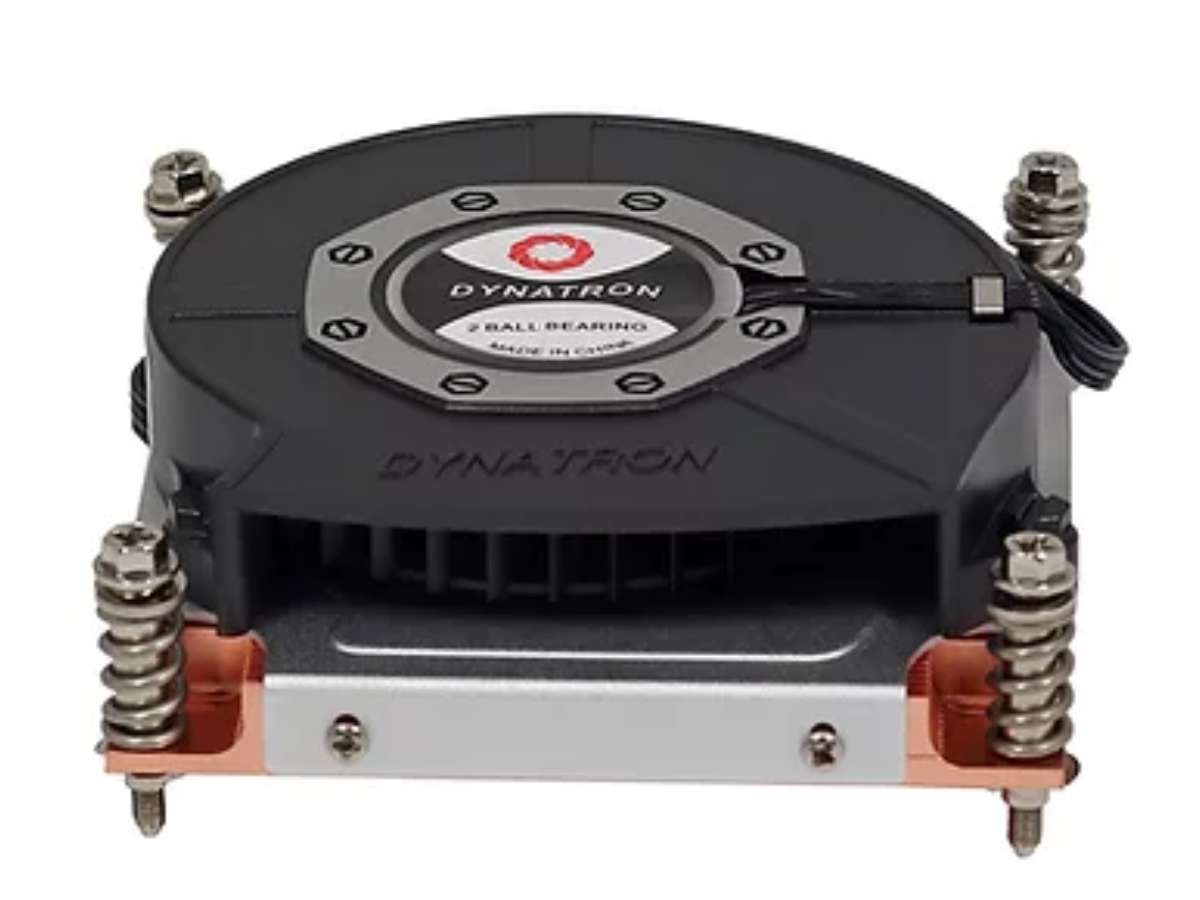

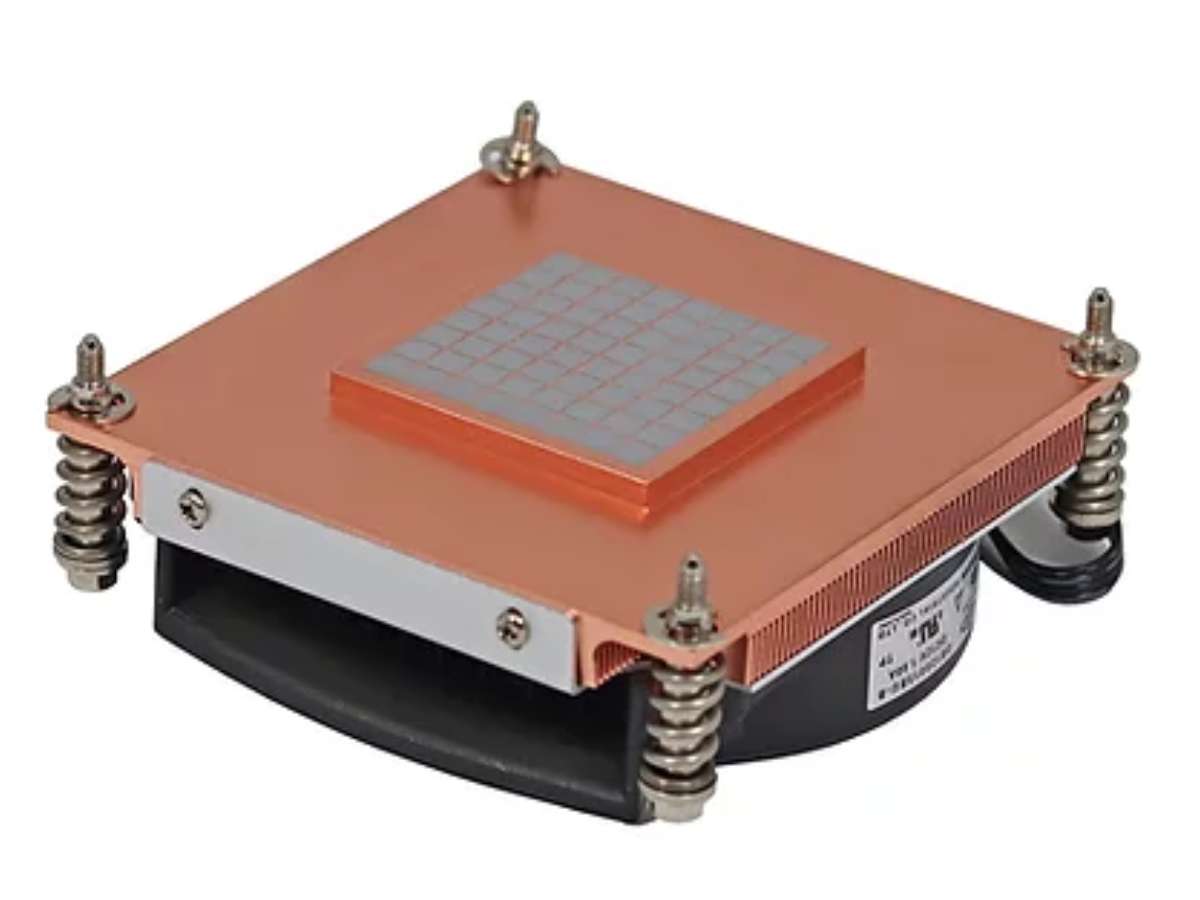

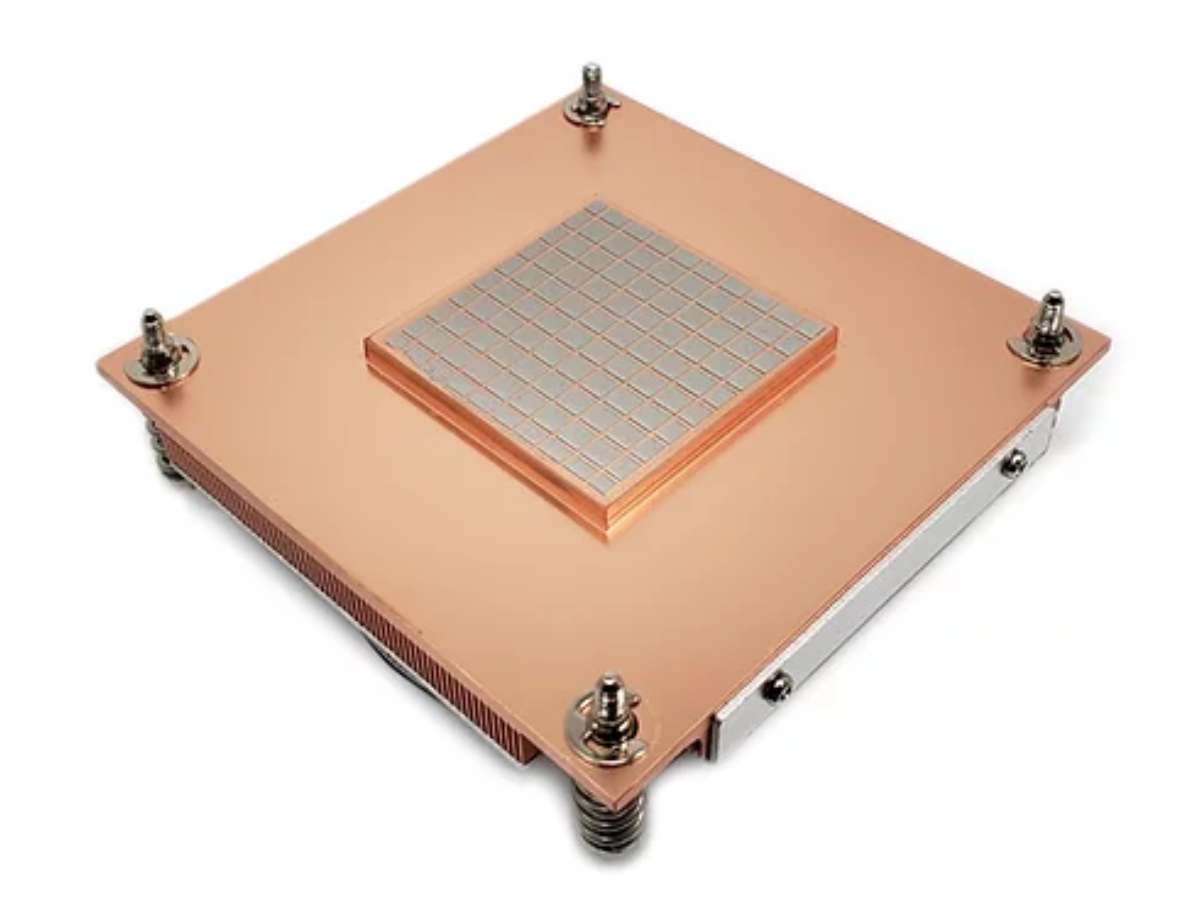

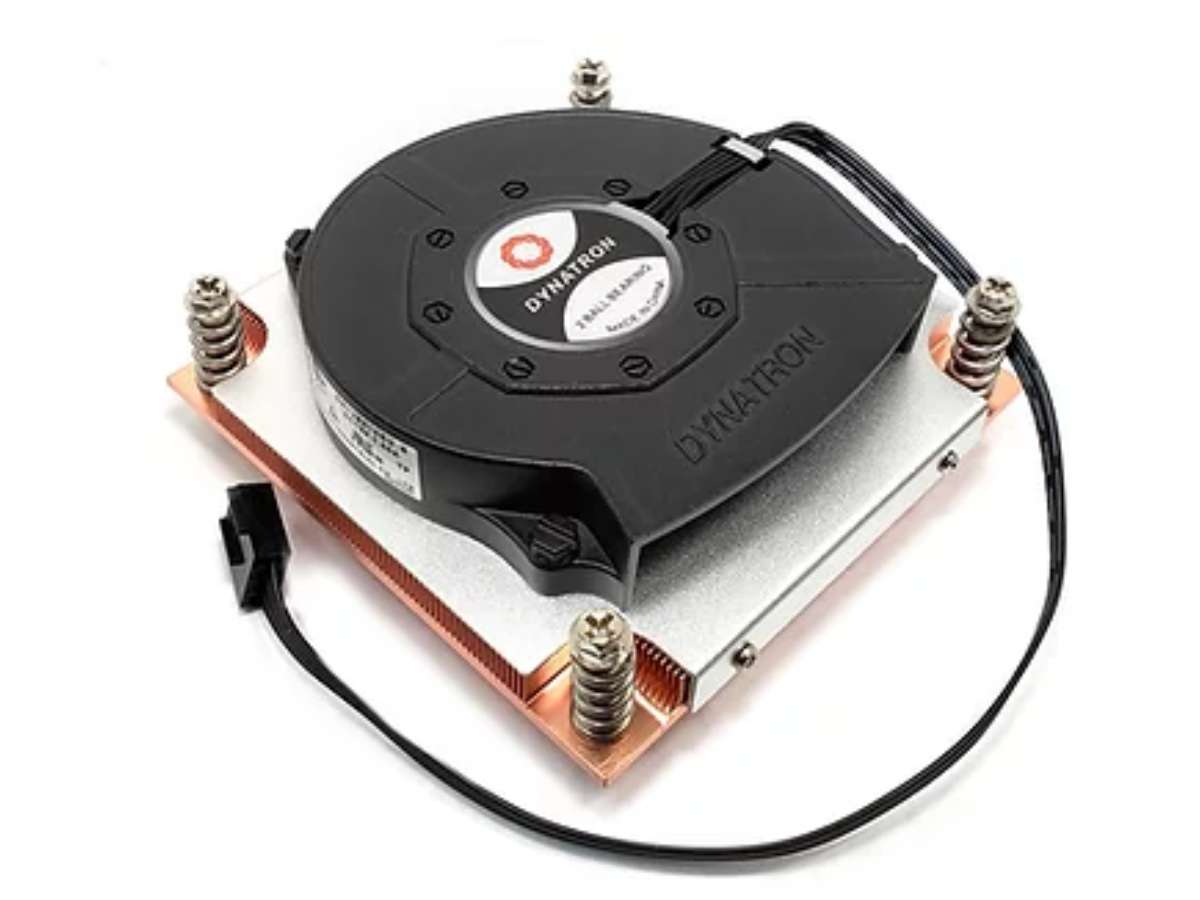

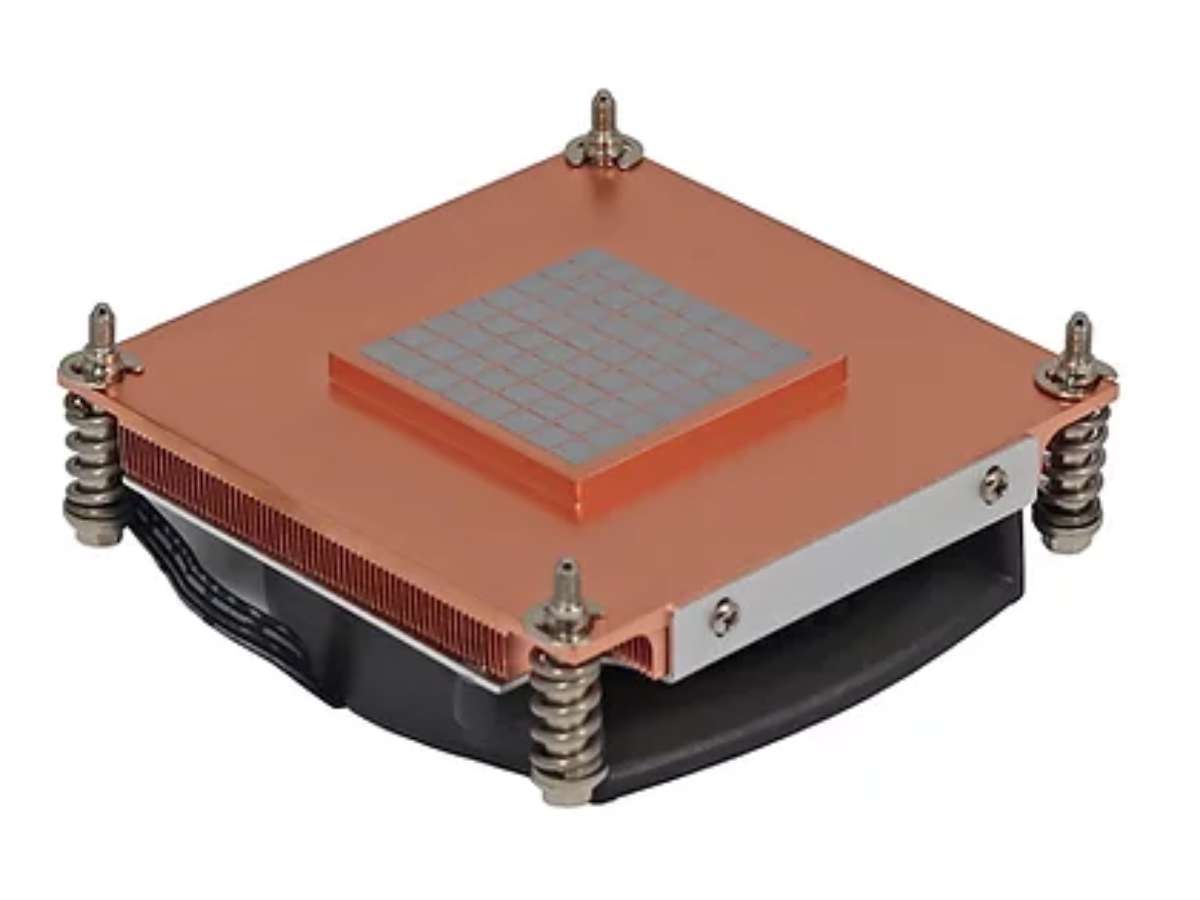

Dynatron Q3 Side Blower Cooler suitable for 1U Chassis with Intel Socket 1700 (Intel 12th, 13th Gen Core)

Dynatron Q3 Low Profile, 28mm High Side Blower Cooler with copper heatsink suitable for cooling Intel Socket LGA 1700 motherboards (12th and 13th Gen Core) in a 1U Chassis.

Long life two-ball bearing fan draws cool air though the fins and extracts hot air to one side to support chassis airflow. Pre-applied high performance GE-Toshiba TIG830SP thermal grease ensures clean and easy installation.

Case Compatibility: Side Blower design suitable for use in a 1U chassis. Tip: angle the Q3 to force air out of the rear of the chassis.

Screw Fit: Screws surrounded by compression springs attach to the provided base plates fitted underneath the motherboard. Base plates fit on top of existing motherboard socket. It is not necessary to remove any components before fitting.

Compatible Boards and CPUs: Intel Socket 1700 Motherboards fitted with a processor producing up to 125W CPU Heat Dissipation. Not to be equated directly to a CPU's Base Power or TDP figure as these understate heat output particularly in Turbo and Overclocked modes. CPU Turbo behaviour and fan speeds vs. temperature can be configured in a motherboard's BIOS.

Specifications: PWM controlled Fan speed: 1000 RPM (at 0-20% Duty Cycle); 3500 RPM (at 50%); 7000 RPM (at 100%); Airflow: 6.5 CFM (at 0-20%), 11.2 CFM (at 50%), 22.28 CFM (at 100%); Air Pressure: 2.27 mm-H2O (at 0-20%); 18.56 mm-H2O (at 50%); 74.18 mm-H2O (at 100%); Noise level: 21.5 dBA (at 0-20%), 43 dBA (at 50%), 59.14 dbA (at 100%); Power Consumption: 0.6 W (at 0-20%); 3.84 W (at 50%); 19.2 W (at 100%); Weight: 444g; Fan Dimensions: 92 x 92 x 28mm; Overall Dimensions: 92 x 90 x 28 (H) mm.
