Transcend 240GB Type 2242 M.2 SATA 3D TLC NAND SSD for Selected Devices
| Transcend 240GB Type 2242 M.2 SATA SSD | |
| £42.00 inc. VAT | |
|
PRE ORDER
Lead time usually 1-3 days |

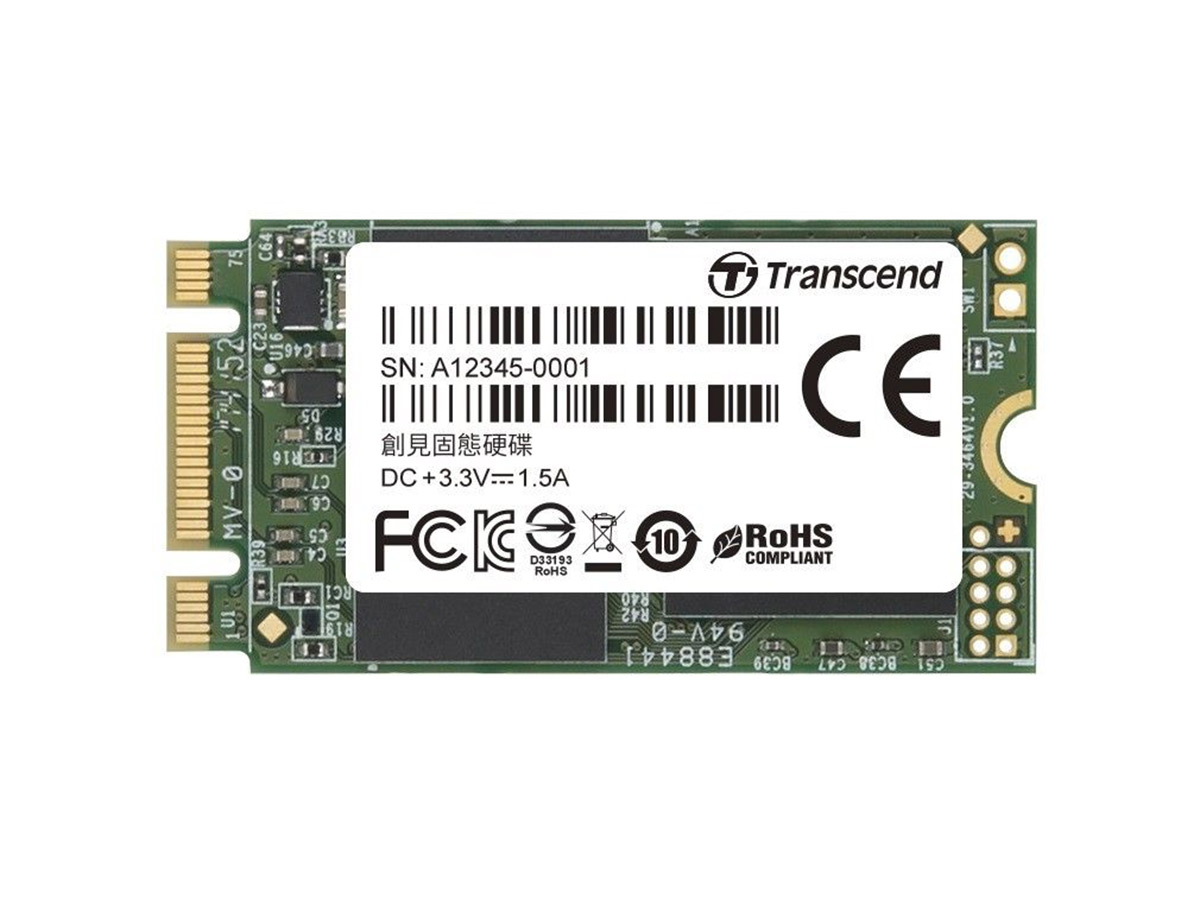

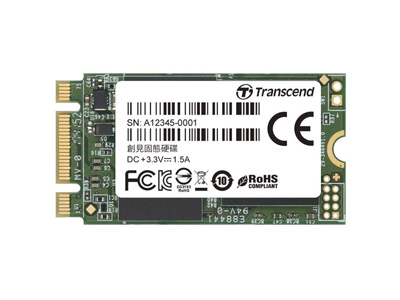

Transcend 240GB Type 2242 M.2 SATA SSD. Space-saving 42mm M.2 form factor suitable for some of our Mini-ITX motherboards and Mini PCs.
Supports Power Shield (power loss data prevention); DevSleep mode; S.M.A.R.T.; TRIM and NCQ Commands. RoHS compliant.
Type: Solid State modules (SSM).
Flash Type: 3D TLC NAND Flash.
Form Factor: M.2 2242.
Interface: M.2/B-M-Key (SATA 6Gb/s).
Read: Up to 560 MB/s.
Write: Up to 500 MB/s.
Dimensions: 42.0 mm x 22.0 mm x 3.58 mm (1.65" x 0.87" x 0.14"); Weight: 8g (0.28 oz).
Operating Temperature: 0°C (32°F)-70°C (158°F).
Operating Voltage: 3.3V±5%.
Operating System Support: Windows & Linux.
| Specifications | ||
|---|---|---|
| Brand | Transcend | |
| Model | 240GB Type 2242 M.2 SATA SSD | |
| Form Factor | M.2 Type 2242 SSD | |
| Storage Capacity | 240GB | |
| Performance | ||
| Read Speed (max) | 560MB/s | |
| Write Speed (max) | 500MB/s | |
| Total Bytes Written (TBW) | 80TB | |
| Data Rate | 6Gbs | |
| Life Expectancy | 1 million hours MTBF | |
| IOPS | ||
| Read | Write | |
| 4K | 40,000 | 75,000 |
| Power Consumption | ||
| Read | 1W | |
| Write | 1W | |
| Idle | 640mW | |
| Cooling | ||
| Operating Temperature | 0℃ - 70℃ | |
| Dimensions | ||
| W x L x H | 42 x 22 x 3.58mm | |
| Volume | 3.31mL | |
| Weight | 5g | |
| Manufacturer's Warranty | ||
| Duration | 3 years | |
| Type | Limited | |
| Software | ||
| Windows 7 | ||
| Windows 10 | ||
| Windows 8 | ||
| Linux Kernel 2.6.31 or later | ||
