Posted on September 26, 2003

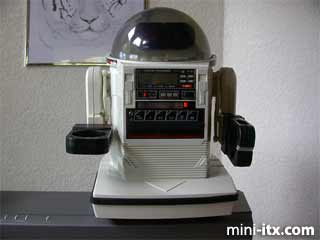

This is the OMNIBOT made by TOMI. This was a non-functioning robot before I started this modification. The electronic parts were either corroded, missing, or damaged, so were tossed. This is what the robot looked like prior to the modification and after it had been cleaned. I shall call him "MR. OMNI" the "OMNI-PUTER".

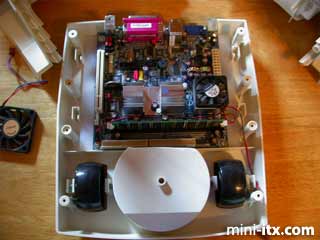

The base of "MR. OMNI" had seven wheels, four were removed as well as the gear drive box so the frosted plexiglass and mother board could be mounted. There were three mounting towers which helped to hold the base on with screws and wheel axle tabs that were removed with a dremel tool. The frosted plexiglas hides the scars from the modification.

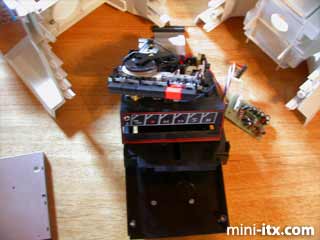

This pile of parts represent the cassette
player that was in the robot. I removed the cassette player
and modified the the front panel to accept the

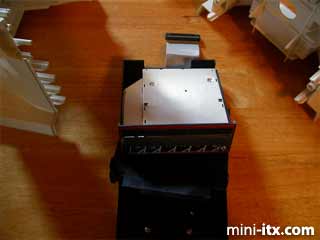

slimline CDRW-DVD. The mounting towers inside the
cassette housing were cut short to allow the CDRW-DVD
player to fit all the way in, but left long enough to
support the drive once secured within the housing.
As you can see the drive fits snuggly for a clean modification.

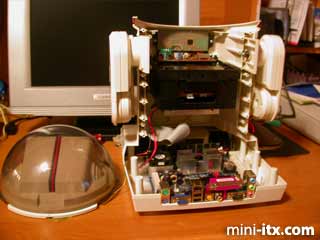

The CDRW-DVD can be seen through the cutout in the former cassette player housing. The IBM TravelStar hard drive is attached to the lid (under) the CDRW-DVD drive housing.
The cooling fan is in the back (formally
battery box) of the robot. The rubber seal between the
base
(with wheels) and base (with body) is removed. The
system will work eith with or without the seal. There
are no overheating issues either way. The seal does
make for a more secure attachment.

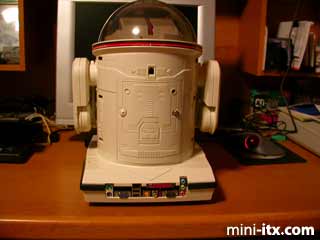

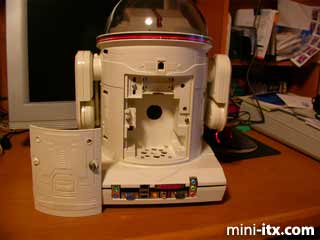

Here the rubber seal is in place. The cut outs for the motherboard connectors are visible. "MR. OMNI" is ready to "ROCK" as far as I am concerned. But if you take notice to the next photo "HE" has other plans.

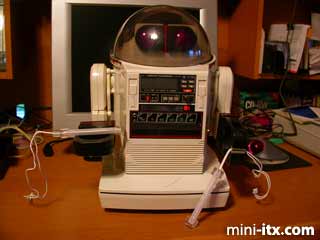

BEWARE, OF WHAT YOU CREATE!! "MR. OMNI" wants cold cathode lighting and wireless and...the list goes on. I guess I'd better build a dog house next as it seems I may be there for quite a while.
"MR. OMNI" Specifications
EPIA Nehemiah M10000
1GB Memory
CDRW-DVD (slimline)
IBM TravelStar 40 Gig Hard Drive
Windows XP PRO
Audioforge 120 watt, 12v DC-DC ATX converter
Cold Cathode Lighting (blue)
![]() |
![]() |
![]() |
