Posted on August 24, 2002
Introduction

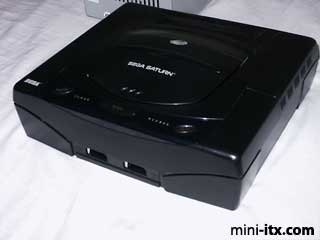

Musse in Sweden hollowed out his Sega Saturn with his trusty Dremel and filled it up again with a Mini-ITX motherboard, hard drive and CD. Sourcing a small PSU proved a problem, so it's externally mounted for the moment!
|
|
|
Do you have a Mini-ITX based project we should be seeing here? Contact us at feedback@mini-itx.com with details and win a delicious case badge!
Contents
1. Everyone needs a Dremel
I stripped my old Sega Saturn console. I used my dremel :) to cut down all the plastic pieces inside and made the case flat inside as much as possible.
|
The hardware inside is now:
* VIA EPIA 800 MHz Motherboard
* 512 MB SDRAM
* 20 GB 2.5" IBM Travelstar Harddisk
* 32x Slim Teac CD-ROM
Unfortunately I don't own a digital camera
so I couldn't take pictures
during the construction process.
|

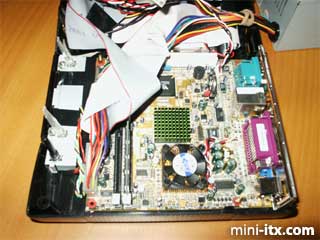

I screwed in the motherboard's standoffs under the motherboard in the other 3 holes so it will stand on them (For those who don't know there are 4 holes in each corner).
|

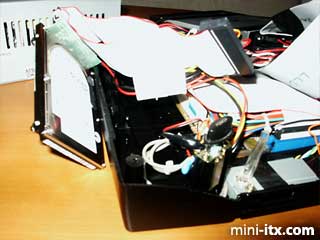

To the left of the motherboard I have
space for the 2.5" harddrive - under the cables.
|

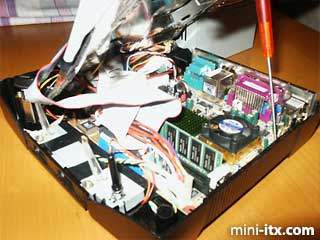

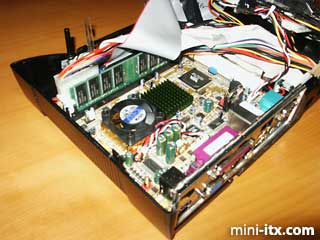

Next I connected the SDRAM memory plus all remaining cables to the motherboard.
|
![]() |
![]() |
![]() |
