Posted on September 30, 2002

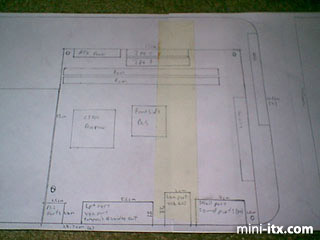

My Schematics
|
As you can see I didn't stick to these
but I always uses these only as reassurance that I can actually
fit it inside the box. Had to switch the mobo and the HD places
because of the Handle so these are wrong. That box on the
left hand side is the power supply.

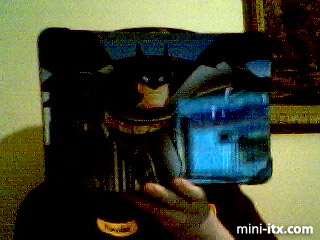

The Untouched Lunchbox
|
As you can see it's bigger then my head. It's 12"X8"X3". They don't make them that big in America so I got it imported. I choose Batman because - well because Winnie the Pooh isn't my style. Pretty sturdy box, don't see who needs a lunchbox this big but glad they make them anyway.

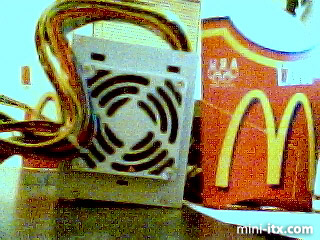

Power Supply
|
150 watt power supply. Flex-ATX style.
Smaller then super sized fries. This power supply is pretty
nice and doesn't get too hot. Although I wanted to use custom
screws to hold it in and because of the PCB board placement
on the inside I couldn't. Oh well.

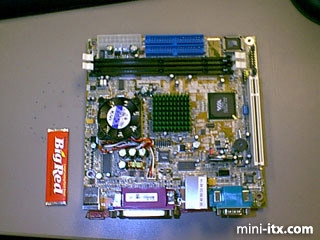

VIA Motherboard
|
This is my new Mini-ITX motherboard. It comes
onboard with TV-out, sound, video, C3 800mghz processor and
up to 1gig of ram. Takes a standard ATX power supply which
is nice. What you'll notice if you look close is no FDD controller.
Oh well, didn't want floppy anyway. Only twice the size of
Big Red basically - that is damn sweet.

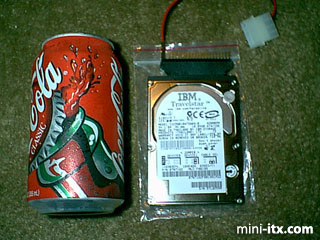

Hard Drive
|
As you can see the 2.5 inch 10 gig IBM drive is not even bigger then a Coke can. That wired adapter you see is to go from the standard 44 pin laptop drive to the 40 pin IDE cable. The drive is only 4200 rpm and that kind of sucks, but I'm cheap like that. Also you might see me using a lot of name products to show scale, That just so you can marvel at home at the size not because I care about the products.

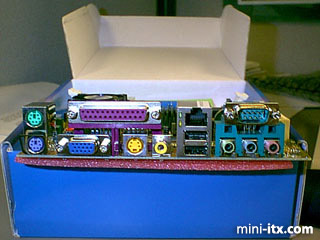

The Ports
|
Basically a Quick rundown of the ports from right to left;
PS2(mouse/keyboard), Parallel port, VGA port, S-video, RCA video/ S/P-Dif, Ethernet port, USB x 2, Serial, Sound out/in/Mic
![]() |
![]() |
![]() |
