ASRock H610M-ITX/ac Mini-ITX board with 12th-14th* Gen Intel Core Support, Intel LAN, Ultra M.2, 4x SATA, HDMI, 8K DisplayPort, PCIe 4.0 & 802.11ac WiFi
| ASRock H610M-ITX/ac | |
| £130.80 inc. VAT | |
| IN STOCK (Checked 10:29) |

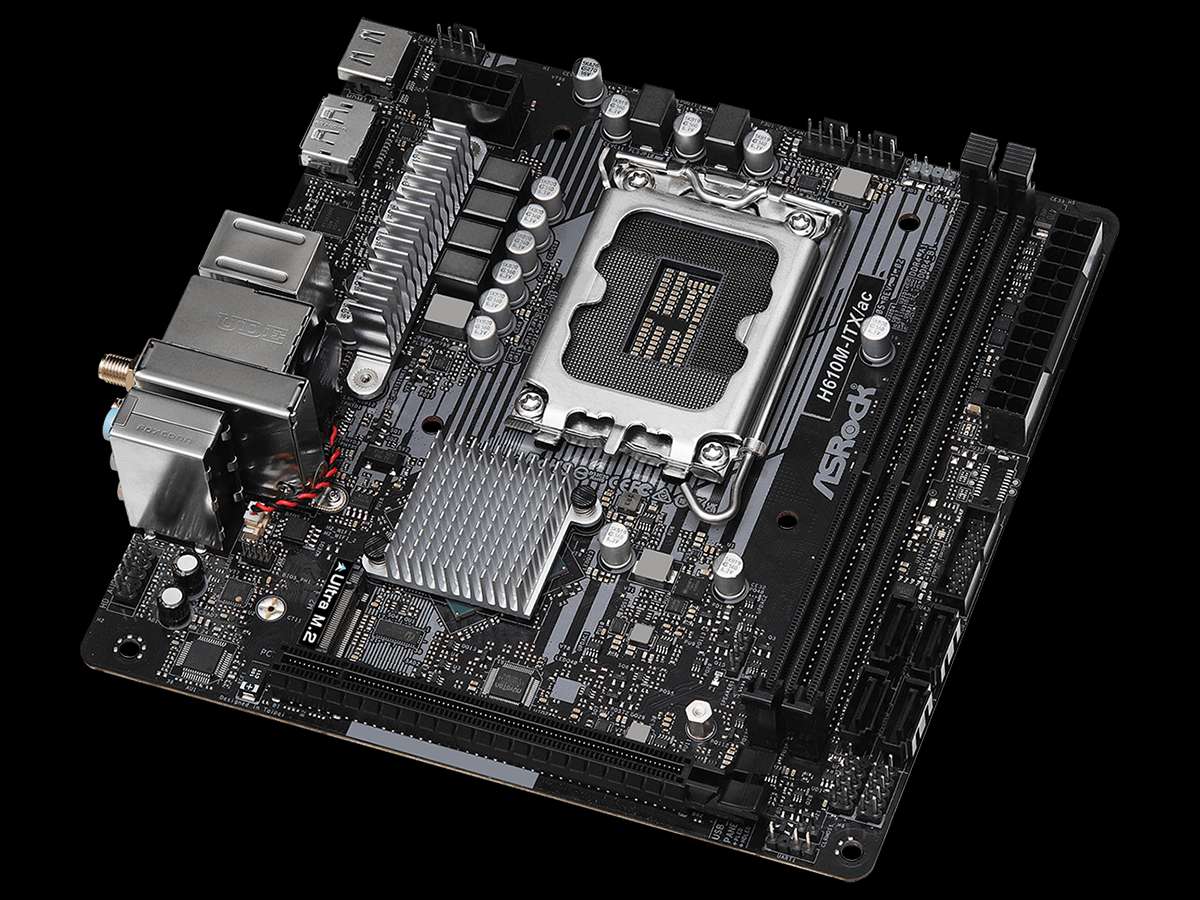

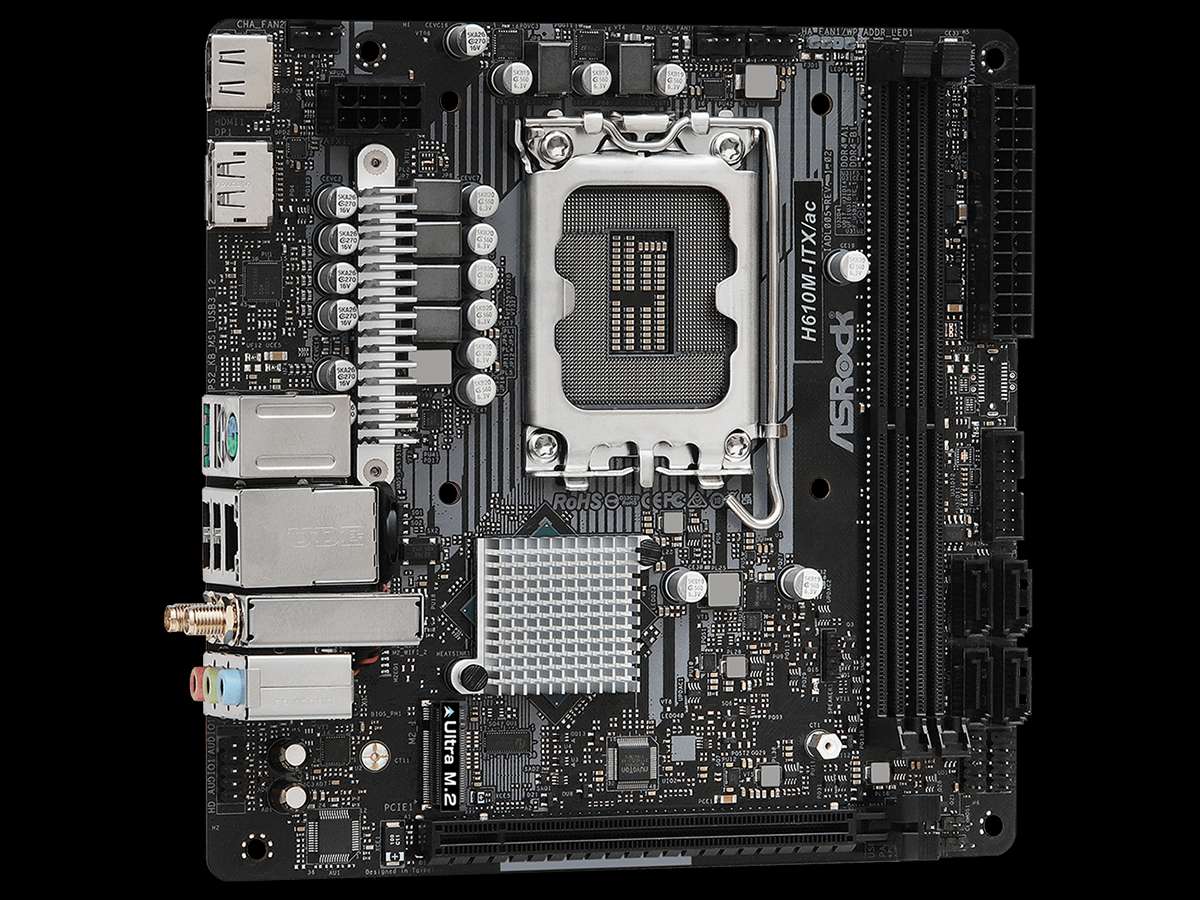

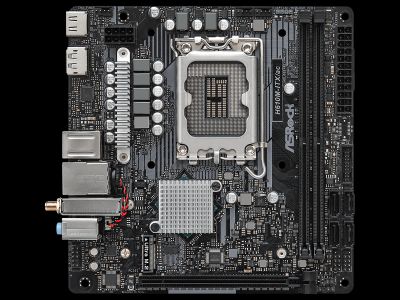

Feature-packed ASRock H610M-ITX/ac Mini-ITX board with Intel H610 chipset supporting 12th-14th Gen Intel Core processors (Socket 1700) and DDR4 memory up to 3200MHz.

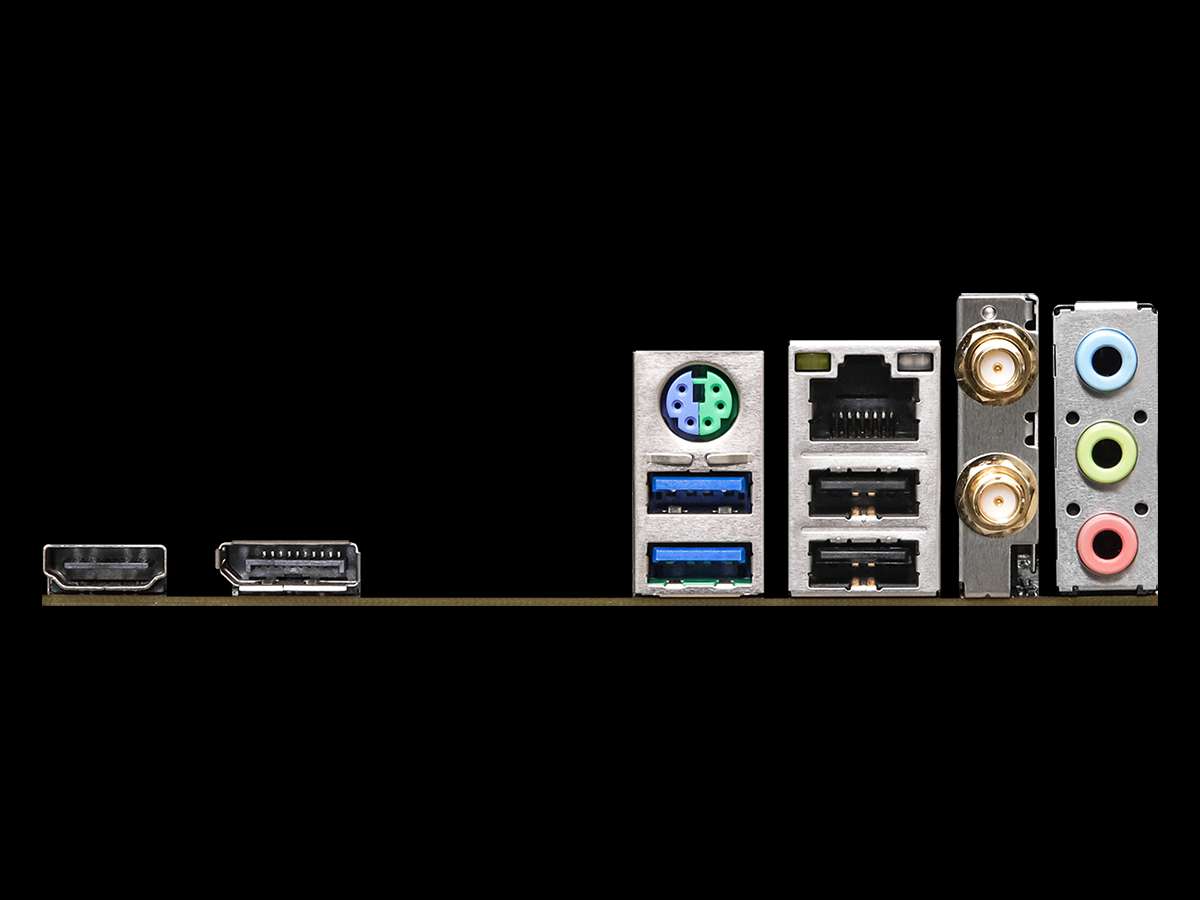

Rear Panel Connectors: 1x HDMI 2.1 TMDS Compatible with max. res up to 4096x2160 @ 60Hz; 1x DisplayPort 1.4 with DSC (compressed) max. res up to 8K (7680x4320) @ 60Hz / 5K (5120x3200) @ 120Hz; 1x Combo PS/2 Keyboard/Mouse; 2x USB 3.2 Gen1 Type-A; 1x Intel I219V Gigabit LAN Port (10/100/1000 Mb/s); 2x USB 2.0 Type-A; 2x WiFi Antenna Connectors; 3x HD Audio Jacks: Line in, Front Speaker and Microphone.
Storage and Expansion: 4x SATA 6Gb/s; 1x Type 2280 Ultra M.2 slot (Supports SATA 6Gb/s and PCI-E Gen3 x4 at 32Gb/s); 1x Vertical M.2 Type E Slot (used by the included Intel WiFi + Bluetooth Module); 1x PCI Express 4.0 x16 Slot.
Board Connectors: 24pin ATX Main Power connector; 1x 8pin 12V Power Connector (4pins can be used); 1x RGB LED Header; 1x Addressable LED Header; 3x Fan Connectors: 1x 4pin CPU, 1x 4pin Chassis/Fan, 1x 4pin Chassis/Water Pump Fan with Smart Fan Speed Control; 1x Front Panel Audio Connector; 1x USB 2.0 Header (supports 2x USB 2.0 ports); 1x USB 3.2 Gen1 Header (Supports 2x USB 3.2 Gen1 ports)
Suitable Processors: The ASRock H610M-ITX/ac supports 12th-14th Gen Intel Core Socket LGA 1700 processors. The ASRock H610M-ITX/ac is not provided with a processor. Suitable processors are available in the 'you may also require' section to the left. If using an Intel processor without integrated graphics ('F' or 'KF' in model name) you will need a graphics card.
13th & 14th Gen CPU Support: If using a 14th Gen processor, BIOS needs to be at version 9.01 or above. If using a 13th Gen processor, BIOS needs to be at version 6.02 or above. An early Gen processor may be required to update the BIOS version, depending on the build date of your board.
Multiple Screens: This board Supports up to 2 displays simultaneously via DisplayPort 1.4 and HDMI 2.0.
Wireless LAN: Intel 802.11ac WiFi Module supports Dual Band 2.4/5GHz 802.11a/b/g/n/ac up to 433Mbps and Bluetooth 4.2/3.0 & High speed class II.
Unique PCB Features: Premium 60A Power Choke; 50A Dr.MOS; High Density Glass Fabric Sapphire Black PCB.
Suitable Cases: This board will fit in all our Mini-ITX chassis with an appropriate heatsink. Power Supply requirements will depend on the choice of processor, if Turbo mode is enabled in the BIOS, and if a PCI-E card is fitted.
1U Case compatibility: To use this board in a 1U case please use the Dynatron Q3 1U Side blower heatsink.
Windows Support: Windows 10 64-bit and Windows 11 64-bit are supported.
Downloads: BIOS, Documentation and Drivers.

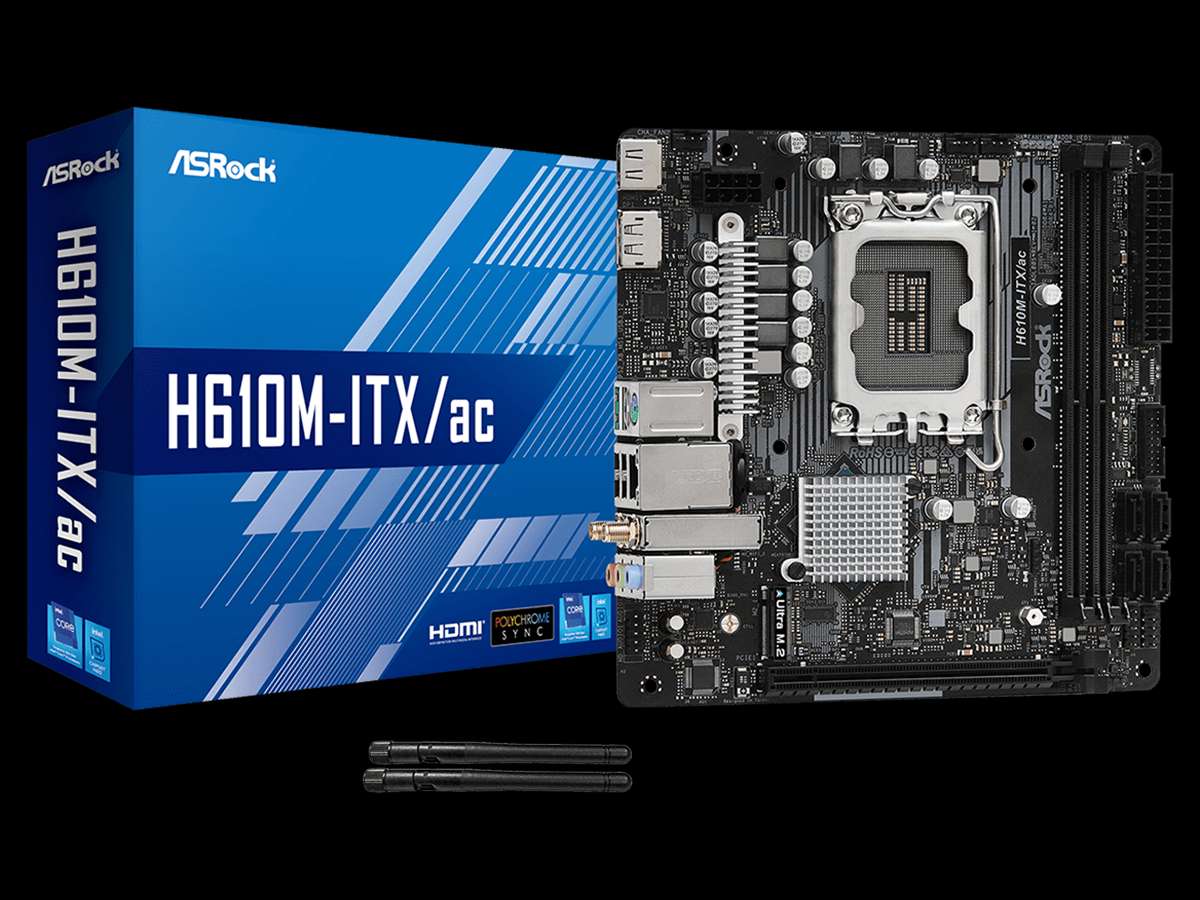

Package Contents: 2x SATA Data Cables, 2x ASRock 2.4/5GHz WiFi Antennas; 1x IO Shield; 1x Screw for M.2 Socket; 1x Quick Install Guide; 1x Support CD.
Other Features: Software: A-Tuning Motherboard Utility; Polychrome SYNC; XFast LAN; UEFI Features: EZ Mode, Full HD, Instant Flash, Internet Flash.
Suitable Memory: The ASRock H610M-ITX/ac supports up to 3200MHz DDR4 memory up to 64GB in 2 slots (32GB per slot). The ASRock H610M-ITX/ac supports Intel Extreme Memory Profile (XMP) 2.0. DDR4 is not compatible with other types of DDR memory. Fully tested DDR4 DIMMs are available in the 'you may also require' section to the left. ECC Memory is supported - but will run in non-ECC mode.
| Specifications | ||
|---|---|---|
| Model | ASRock H610M-ITX/ac | |
| Processor Socket | Intel Socket 1700 | |
| Architecture | Alder Lake | |
| Chipset | Intel H610 | |
| CPU Compatibility | Intel 12th Gen, Intel 13th Gen, Intel 14th Gen | |
| Cooling | ||
| Connectors | 1x CPU Fan Connector | 4-pin |
| 1x Chassis Fan Connector | 4-pin | |
| 1x Chassis/Water Pump Fan Connector | 4-pin | |
| Graphics | ||
| Displays | 2 | |
| Outputs | 1x DisplayPort 1.4 | 7680x4320 @ 60Hz max res. |
| 1x HDMI 2.1 | 4096x2160 @ 60Hz max res. | |
| Memory | ||
| Maximum | 64GB | |
| Sockets | 2x DIMM | |
| Type | DDR4 | 2133MHz, 2400MHz, 2666MHz, 2800MHz, 2933MHz, 3200MHz |
| Storage | ||
| Ports | 5 | |
| Type | 1x M.2 (NVMe/SATA) 2280 Slot | Board |
| 4x SATA 6Gb/s | ||
| Network | ||
| LAN Ports | 1 | |
| LAN 0: | Intel i219-V 1Gbps | |
| USB | ||
| Connectors | 8 | |
| Types | 2x USB 2.0 Type A | Rear |
| 2x USB 2.0 on pin header | Board Pins | |
| 2x USB 3.2 Gen1 (5Gb/s) Type A | Rear | |
| 2x USB 3.2 Gen1 (5Gb/s) on pin header | Board Pins | |
| Wireless | ||
| Type | Intel 802.11ac WiFi with Bluetooth 4.2 | |
| Audio | ||
| Chipset | Realtek ALC887 | Supports 8 Channel audio |
| Connectors | 1x 3.5mm Mic | |
| 1x 3.5mm Front Speaker | ||
| 1x 3.5mm Line In | ||
| Expansion | ||
| PCI-Express | 1x PCI Express 4.0 x16 | |
| M.2 WiFi | 1x M.2 Type-E 2230 slot for WiFi/BT | Populated by Intel 802.11ac / BT 4.2 Module |
| Other I/O Ports | ||
| 2x 2.4GHz/5GHz Antenna Connector | ||
| PS/2 Keyboard/Mouse Port | ||
| Power | ||
| 24-pin ATX power connector | ||
| 8-pin ATX +12V power connector | ||
| Additional Board Headers | ||
| Addressable LED header | ||
| Front Panel Audio Connector | ||
| OS Support | ||
| Windows 10 64-bit | ||
| Windows 11 64-bit | ||
