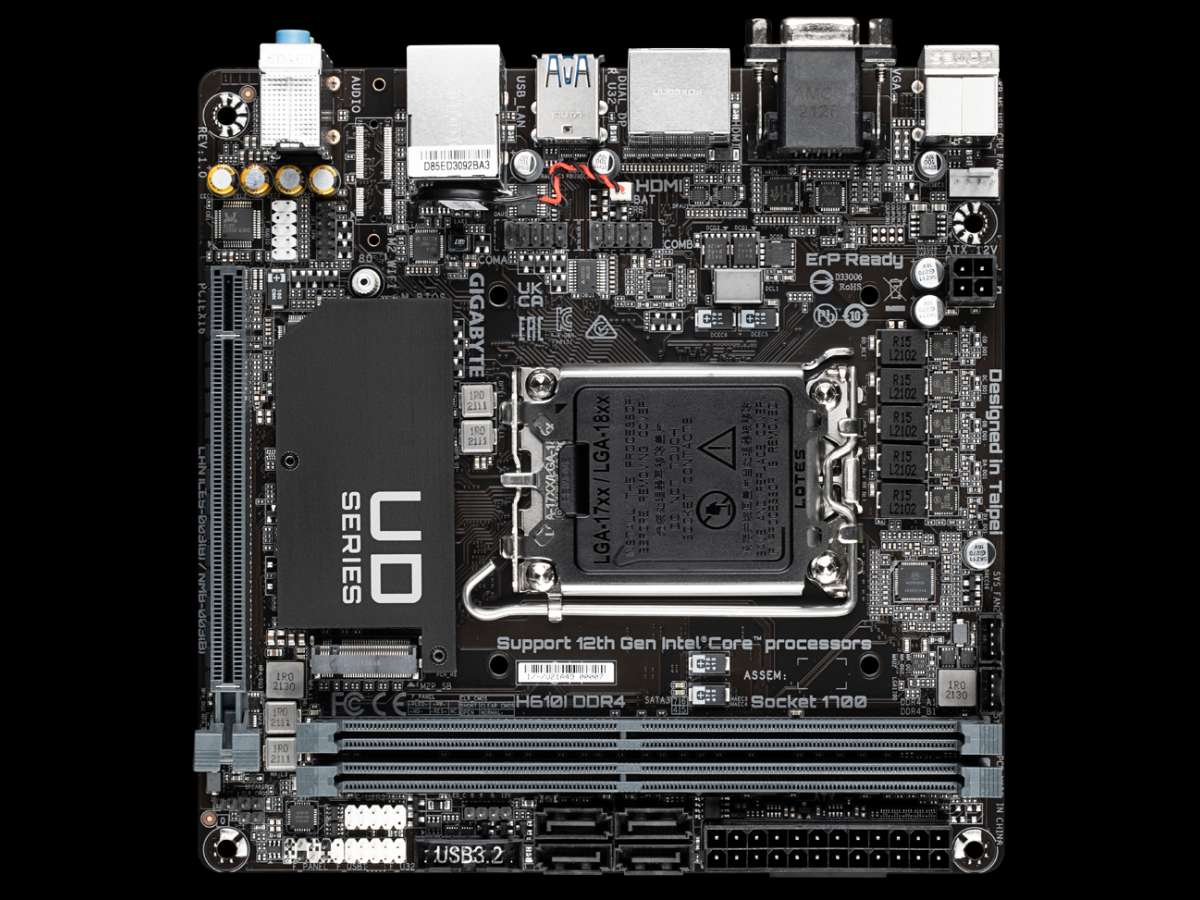

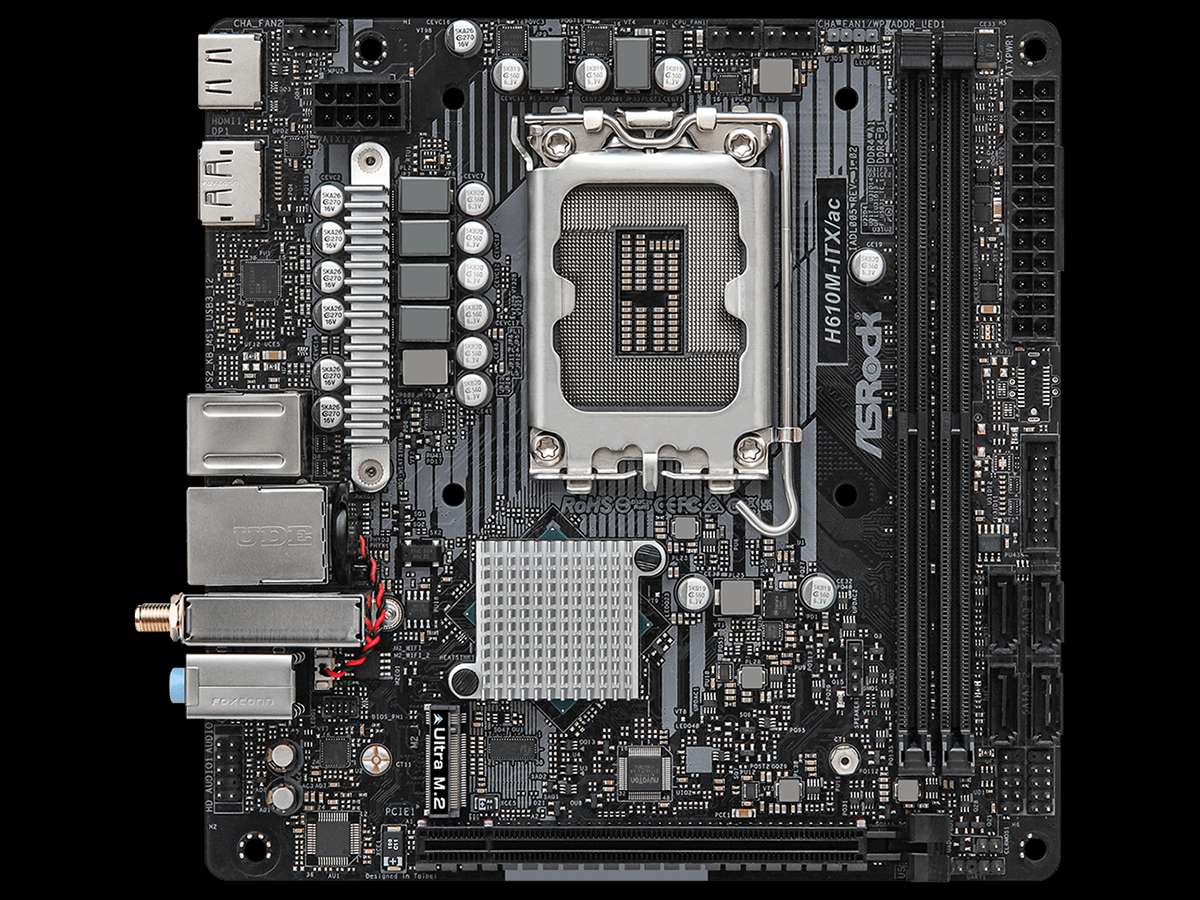

Choose from 2 Intel H610 Chipset Mini-ITX Boards. The ASRock H610M-ITX/ac has WiFi, 4K HDMI, 8K DisplayPort. The Gigabyte H610I DDR4 has VGA, 4K HDMI and 2x 4K DisplayPort. Both boards support up to 64GB DDR4 RAM and have PCIe3.0x4 M.2 Storage Slots and 4x SATA 6Gb/s, and are Windows 10, 11 and Linux Compatible.

Select your C64x colour

If choosing 2 sticks of memory, please match the speed ('2666', '3200')

The M.2 storage drive slot gives fast PCIe 3.0 x4 primary storage.

2.5in drives can be mounted in the lower HDD bay or in the upper DVD drive bay with an adapter.

There are 2 ways of fitting a 3.5in drive: 1. By removing the drive tray and screwing from underneath (a 2.5in drive can also be informally positioned in empty space). 2. If a 2.5in drive is positioned in a DVD slot adapter, 4x M3 10mm screws can be used to attach a 3.5in drive from underneath.

The DVD slot is open in the C64x as standard. The slot can be used to feed cables in/out, or you may prefer to fit this adapter to utilise the space.

You will need the picoPSU-150-XT and 150W AC Adapter to power your board. Add the extension cable if you have a 2.5in *and* a 3.5in drive. We recommend disabling Turbo Boost in the BIOS to reduce peak consumption.

This panel allows the DC In Socket of the picoPSU to be mounted in place of the standard USB 3.0 side panel. Instead of using this, a hole can be carefully drilled in the rear of the chassis, or the cable can be fed through the DVD slot or side panel if no DVD device or side panel is fitted.

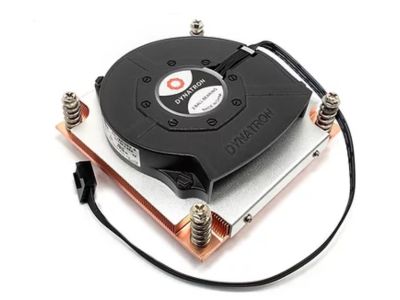

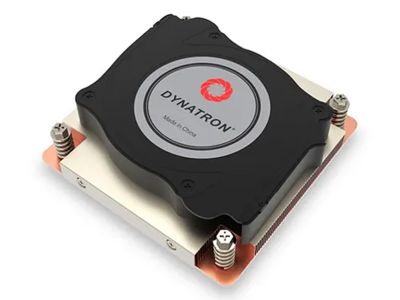

A low profile cooler is required with the C64x. We recommend the Akasa H4i heatsinks for quieter Intel Celeron and i3 builds, and the Dynatron Q3 or Q7 for more powerful processors.

Add the Noctua NF-A4x10-PWM Cooling Fan for added airflow at the rear of the chassis.

Genuine Windows DVD and licence key. If installing yourself, we recommend downloading the latest version from Microsoft and installing from a USB stick, then registering with the key.
