Zotac ION-ITX-A Review
Zotac ION-ITX-A Specifications

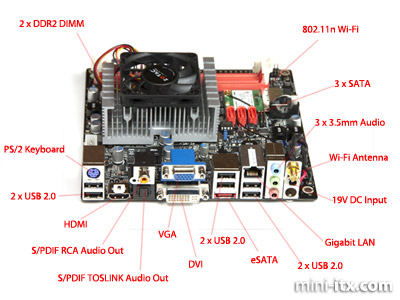

Zotac ION-ITX-A Back Panel Layout
| Processor | Intel® Atom™ Processor 330
(1M Cache, 1.60 GHz, 533 MHz FSB) |
| Chipset | MCP7A-ION |
| Memory | 2x DDR2 800 DIMM slots (up to 8 GB) |
| Graphics | Onboard NVIDIA® ION (NVIDIA® GeForce 9400M) with NVIDIA® PureVideo™ HD, CUDA™, PhysX™ and nView™ support (up to 2 monitors) |
| Audio | 5.1 Channel HD Audio |
| LAN | 1x Gigabit LAN
Integrated 802.11n Wi-Fi (ION-ITX-A only) |
| Back Panel Connectors |
|
1 PS/2 Keyboard port
6 USB 2.0 ports
1 HDMI port
1 S/PDIF RCA audio out
1 S/PDIF TOSLINK audio out
1 VGA
1 DVI
1 eSATA
1 Gigabit LAN
1 Wi-Fi Antenna (ION-ITX-A only)
1 19V DC Input (ION-ITX-A and C only)
|
| Onboard I/O Connectors |
2 DDR2 800 DIMM slots (up to 4GB per DIMM)
3 Serial ATA 3Gb/s Connectors (RAID 0, 1 and 0+1)
2 USB 9-pin connectors for up to 4 additional USB 2.0 ports
1 10-pin Serial pin connector
1 Front Panel Connector
1 3-pin CMOS Clear Jumper
ION-ITX-A and ION-ITX-C only:
1 Female Molex power connector (Molex to 3x SATA cable provided)
|
| Form Factor |
Mini-ITX 17 cm x 17 cm |
First Impressions -->
|
|
