Posted on August 24, 2002
2. The LEDs and CD ROM
I used the original power and reset button as you can see on the pictures.

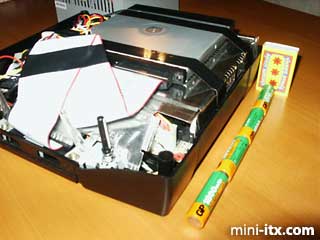

The reset button was a little bit tricky. It was pressing a button on the Saturn console motherboard, so I had to put a little switch under the black plastic stick that you see on the picture (the switch is hidden under plate). Because the switch was so close to the reset stick I had to cut out a bit.
I also use the 2 original plastic pieces that
light up the front panel (where it says POWER and ACCESS on
the case). I simply taped the LEDs under the plastic pieces
and when the leds are used they light up the whole plastic.
It looks very nice, but the case hides that now...
|
|

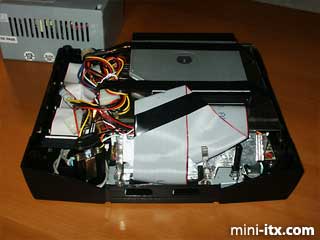

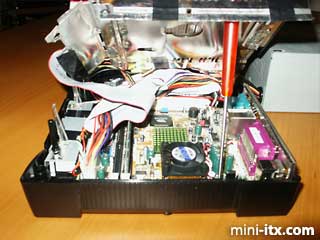

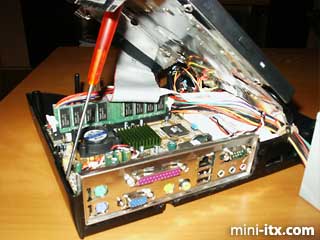

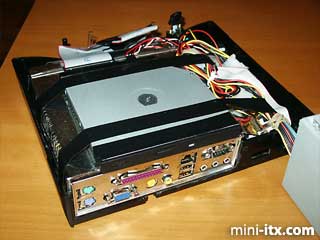

To be able to mount my slim cd above the motherboard I used the tin cover that was used in the Saturn console. I had to cut it and bend it so it fit.
I simply taped the slim cd on top of the tin cover.
|
|
|
|
![]() |
![]() |
![]() |
