5 Atom Mini-ITX Boards Reviewed
Gigabyte GA-GC230D - Overclockable
Gigabyte's GA-GC230D is very similar to the D945GCLF in specification, though it does add an additional USB pin header (allowing 8 instead of 6 USB 2.0 ports in total).
There are three major differences:
1. The GA-GC230D feels better made and uses solid capacitors throughout. In the long term this could mean a lower failure rate.
2. The BIOS used in the GA-GC230D allows simple over (or under) clocking of the Atom 230 CPU. We've had 3 boards running at 2.0GHz and see no reason why all boards won't be capable of this.
3. The chipset heatsink is 'standard' sized meaning the board will fit in most Mini-ITX cases, though the 4mm deep metal bar on the underside of the board that mounts the chipset heatsink may cause problems with a few cases with very low standoff heights. We measured the total height of the board at 44mm.

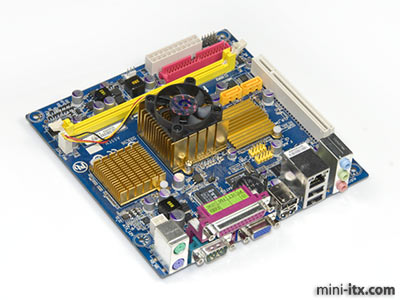

The layout of the board is rather different to the D945GCLF, showing this isn't just a rebadge with colourful components. Impressive, considering that (we think) this was the first Atom board after Intel's to reach market.
| Gigabyte GA-GC230D Mini-ITX Motherboard |
| *Advert* Buy this motherboard at the Mini-ITX Store |
| Processor | 1.6GHz Atom 230 |
| Chipset | 945GC + ICH7 |
| Memory | 1 x DDR2 400/533 DIMM slot (up to 2 GB) |
| Graphics | Intel GMA950 Integrated Graphics |
| Audio | Realtek ALC662 5.1 Channel Audio |
| LAN | Realtek 8101E 10/100Mbit Ethernet |

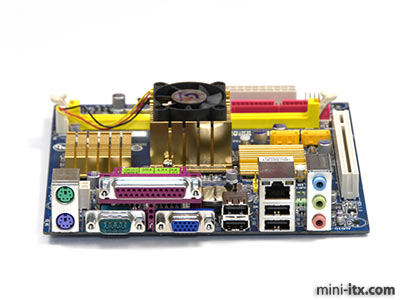

| Back Panel Connectors |
1 PS/2 Mouse
1 PS/2 Keyboard
1 Parallel
1 Serial
1 VGA
4 USB 2.0
1 RJ45 LAN (10/100)
3 3.5mm Audio
|
| Onboard I/O Connectors |
1 PCI Slot
1 IDE Connector (UDMA 33/66/100)
2 SATA Connectors
2 USB Pin Headers for up to 4 additional USB 2.0 Ports
1 9-pin Audio Connector
1 Front Panel Connector
2 Fan Headers
1 4-pin +12V P4 Power Connector
1 20-pin ATX Power Connector
|
