VIA EPIA PX10000 Pico-ITX Review
EPIA PX Specifications
These are the EPIA PX Specifications as provided by VIA in version 1.0 of the user's manual.

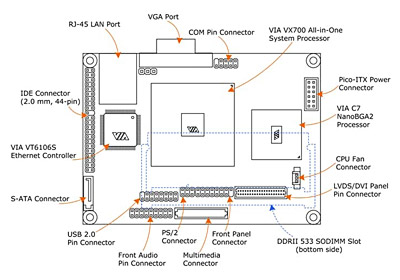

EPIA PX10000 Board Layout
| Processor | Supports VIA C7 1.0GHz NanoBGA2 Processor |
| Chipset | VIA VX700 Advanced All-in-One System Processor |
| Memory | 1 x DDR2 533 SODIMM slot underneath board (up to 1 GB) |
| Graphics | Integrated UniChrome™ Pro II 3D/2D AGP with MPEG-2/4 and WMV9 Video Decoding Acceleration |
| Audio | VIA VT1708A High Definition Audio Codec |
| LAN | VIA VT6106S 10/100 Mbps Fast Ethernet Controller with Power Management Functions |
| Back Panel Connectors |
|
1 RJ-45 LAN port
1 VGA Port
|
| Onboard I/O Connectors |
1 UltraDMA 133/100 connector (2.0mm 44-pin connector)
1 Serial ATA Connector
1 USB pin connector for up to 4 USB 2.0 ports
1 10-pin COM pin connector
1 PS2 mouse/keyboard pin connector
1 16-pin Front Panel Connector
1 3-pin CMOS Reset Jumper
1 6-pin PS2 mouse/keyboard pin connector
1 40-pin LVDS/DVI panel pin connector
1 18-pin Audio pin connector for Line-out, Line-in, MIC-in, S/PDIF in, and 7.1 Channels Audio Output
1 80-pin Multimedia connector to support External TV-Out Interface, Video Capture Port Interface and Low Pin Count Interface. (One VT1625M add-on card is required.)
1 12-pin Pico-ITX power connector
|
| Award BIOS |
LPC 4/8MBit Flash Memory capacity |
| Form Factor |
Pico-ITX (10 layer) 10 cm x 7.2 cm |
External Overview -->
