VIA EPIA PX10000 Pico-ITX Review
The PX-O I/O board
| Update (25th July 07, and again 1st Feb 08): The PX-O board was not included in any final retail packages. Instead, a 4x USB 2.0 cable was introduced. This page remains for posterity. Our similar replacement board is available exclusively from the online store |

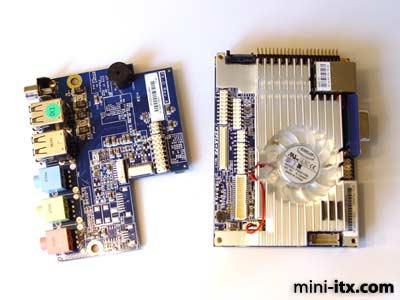

Let's take a look at the PX-O I/O board that came with our motherboard. It fits onto the row of pin connectors we saw earlier. The PS/2 and Front Panel connectors are passed straight through.

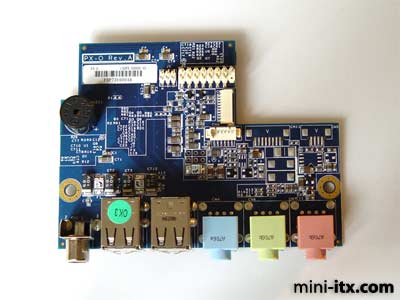

We also get a buzzer, RCA connector, 4x USB 2.0 connectors, 3x Audio connectors, a bunch more tiny surface mounted components and two mysterious "CN9" and "CN10" connectors. The PX-O is only mentioned on the packing list page of our version 1.0 manual so we currently have no idea what these are.

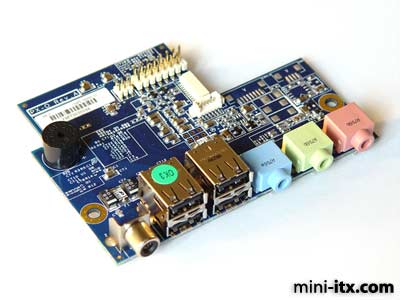

PX-O again, this time in 3/4 view.

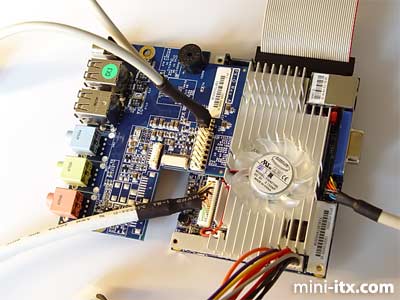

Let's power this puppy up. But first - we'll connect the PX-O I/O board to the Pico-ITX. This also has the added benefit of not making us hunt for a PS/2 mouse.
The PX-O fits fairly sturdily into the PX10000, connecting across 3 different connectors. The two mounting holes are raised in height above the level of the motherboard holes by about 7mm, meaning standoffs or some kind of mounting bracket will be required.

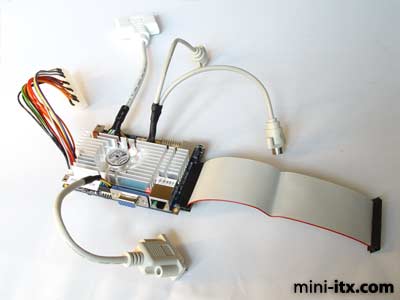

With the PX-O removed and with the power adapter cable, Serial cable, 44-pin IDE cable, PS/2 cable and DVI cable all plugged in.

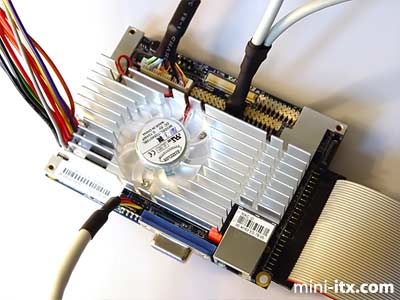

A close up of all the connected cables. The DVI cable is an extremely welcome addition but the wiring into the board connector is far too flimsy, the cable itself is too stiff and there is no strain relief. We broke ours before we even powered up. Resoldering that little yellow wire wasn't fun. If the cables are mounted inside a chassis before connection to the board then these problems should be reduced, but its still a slightly hairy process. We had a similar issue with the very stiff original Nano-ITX power cable - but not so with this one. It's nice and floppy.

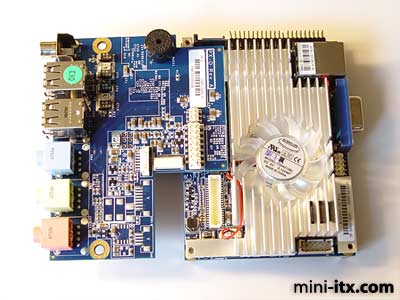

This time with the PX-O I/O board connected. The new hybrid of both boards measures 128 x 100mm in total and adds 10mm to the 30mm height of the PX10000 on its own.
