Posted on June 21, 2002

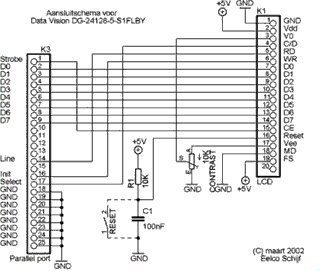

With the help of some people on GoT, Mr ChromM, Zotty and M_Dark and their extremely helpful site http://gfxlcd.schijf.org/ I connected the LCD screen to the LPT using this diagram.
With the excellent software from the above mentioned site a GfX display really comes alive.
|
13. Connecting the GfX-LCD (2)

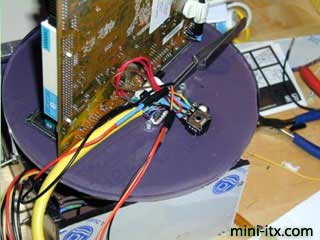

Using a cut-through Coolermaster rounded floppy cable to connect the graphic display to the male LPT connector I have mounted in the back of the case.
|
14. The Front and Back Modules
The two 'modules' ready to be connected in the tube.

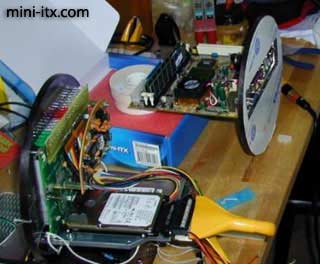

On the left you can see the front module with the DVD/CD-RW, HDD, GfX LCD, RF Reciever and 20LED HDD activity meter.
On the right you can see the back module with the motherboard and 1GB memory.
|
![]() |
![]() |
![]() |
