Zotac ION-ITX-A Review
Heat, Power Consumption and Fan Noise
Many people buy Mini-ITX boards not because of their small size, but because of their low power consumption. Running temperatures and fan efficiency are components of this equation.

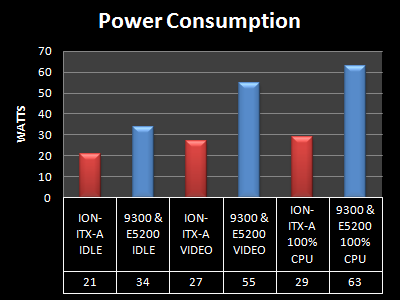

Power Consumption
We measured the power consumption of both boards through a household energy meter at the plug, with just a 2.5in hard drive attached. We used the built-in power supply of the ION-ITX-A board and a very efficient ATX power supply with the Zotac 9300 board - typical setups for each.
We tested at idle, whilst playing back 1080p video, and whilst artificially stress testing at 100% CPU. Here is where the ION board shines. Even at 100% the board doesn't go over 30W, and video playback was at a very reasonable 27W. The Zotac 9300 and E5200 isn't too shabby compared to full size machines, but drew 55W when playing back video.

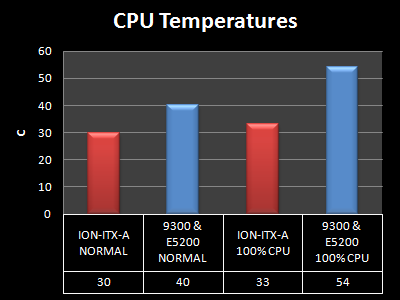

CPU Temperatures
We measured the CPU & GPU temperatures of both boards under normal operation using SpeedFan, then stressed the CPUs to 100% to get a maximum temperature.
The results for the ION-ITX-A were impressive again. 33C at 100% CPU compared to 54C for the E5200 fitted to the 9300 board. This set us thinking...
Will the ION-ITX-A work without its fan?

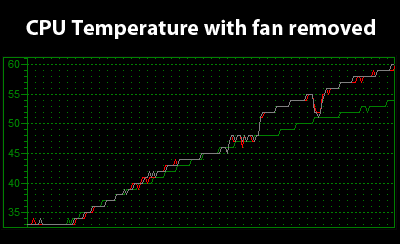

(Answer: No). We couldn't resist unplugging the CPU fan from the ION-ITX-A and seeing what happened when we put the CPU under load. Surely that large CPU heatsink must be enough to keep it cool?
This is what happened. The same thing happened we let the board idle, except the rise was more gradual. Unplugging the CPU fan completely from this board isn't going to do it any favours. Oh well.
Fan Noise
The ION-ITX has a larger than normal 60mm fan with just a very quiet whirr. Fans have come along a lot since the high pitched whine of the 40mm fans of the original Mini-ITX boards 7 years ago and most embedded Mini-ITX boards with fans are very quiet. But purists could always slow the 60mm fan down slightly with a rheostat. And there is always the fanless ION-ITX-B to consider - we suspect this will be able to playback 1080p just as easily as the dual core due to the ION chipset. The stock cooler provided with the E5200 was a pleasant surprise - louder than the ION, but still relatively quiet.
Video Playback -->
|
|
