5 Atom Mini-ITX Boards Reviewed
Intel D945GCLF2 - Dual Core Atom

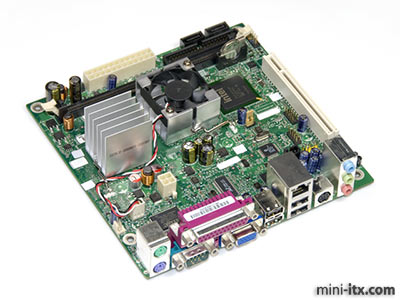

Intel's D945GCLF2 is the first Dual Core Atom Mini-ITX board, using the Atom 330 processor.
The D945GCLF2 will reach market just 4 months after the first Atom Mini-ITX board, though it doesn't replace it. Build style and connectors are very similar to the original D945GCLF board, with the following changes: the CPU is now a dual Core Atom 330, running at 1.6GHz with a TDP of 8W; there is an additional S-Video port; LAN is now Gigabit speed; an additional USB 2.0 pin header has been added giving 8 possible in total (4 on the back, 4 on pin headers)
Like the D945GCLF, we have a gripe with the heatsink height of the D945GCLF2. The board is 3.5mm shorter than the D945GCLF, but will still only fit in a subset of all the Mini-ITX cases available. We measured the total height of the board at 46.5mm, with the heatsink 4mm higher than the Gigabyte board.
| Intel D945GCLF2 Mini-ITX Motherboard |
| *Advert* Buy this motherboard at the Mini-ITX Store |
| Processor | 1.6GHz Atom 330 (Dual Core) |
| Chipset | 945GC + ICH7 |
| Memory | 1 x DDR2 400/533/667 DIMM slot (up to 2 GB) |
| Graphics | Intel GMA950 Integrated Graphics |
| Audio | Realtek ALC662 6 Channel Audio |
| LAN | Realtek RTL8168C Gigabit Ethernet |

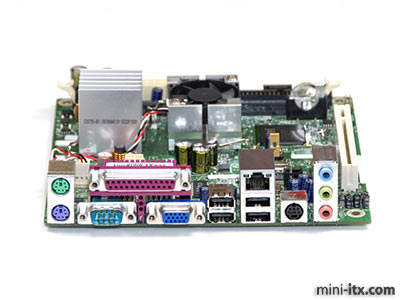

| Back Panel Connectors |
1 PS/2 Mouse
1 PS/2 Keyboard
1 Parallel
1 Serial
1 VGA
1 S-Video
4 USB 2.0
1 RJ45 LAN (10/100/1000)
3 3.5mm Audio
|
| Onboard I/O Connectors |
1 PCI Slot
1 IDE Connector (UDMA 33/66/100)
2 SATA Connectors
2 USB Pin Headers for up to 4 additional USB 2.0 Ports
1 9-pin Audio Connector
1 Front Panel Connector
2 Fan Headers
1 4-pin +12V P4 Power Connector
1 20/24-pin ATX Power Connector
|
