IPCop based Home Gateway
Posted on June 1, 2002

This is Page 3 of 4. Here is Page 1 and Page 2 and Page 4.

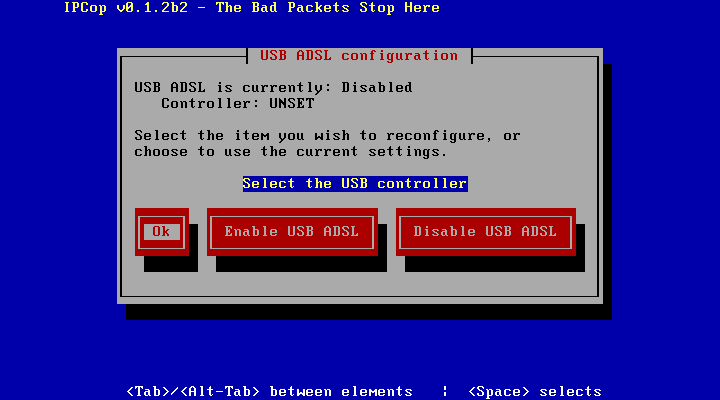

2.13

If you are using an internet connection via Ethernet (such as a cable modem) just choose disable USB ADSL (and jump to step 16), if you're using ADSL via USB, choose OK and autodetect your USB bus.

2.14 - USB ADSL only

Here we have a UHCI, so IPCop successfully found our USB type.

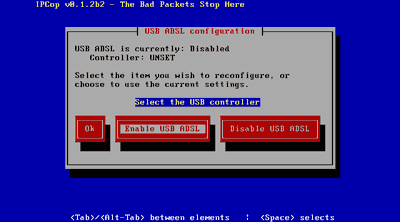

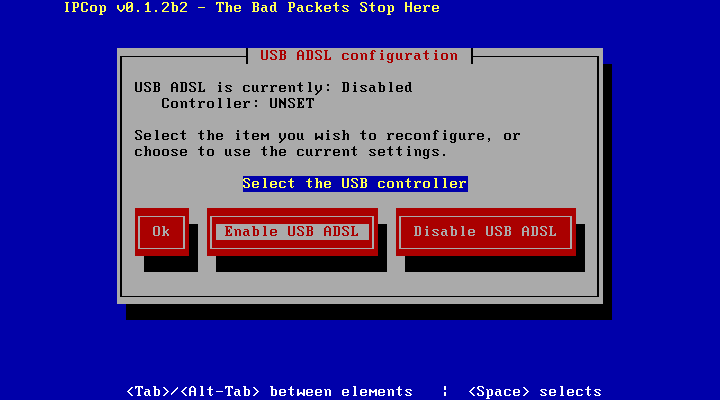

2.15 - USB ADSL Only

select Enable USB ADSL.

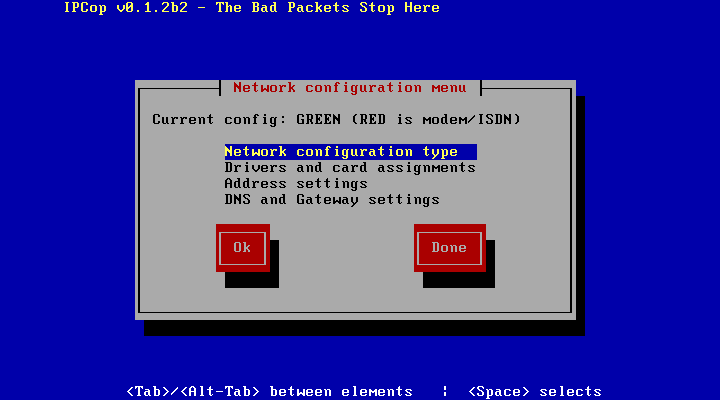

2.16

Now we need to go through these setup options one-by-one. First we'll need to choose our firewall configuration. Select Network configuration type.

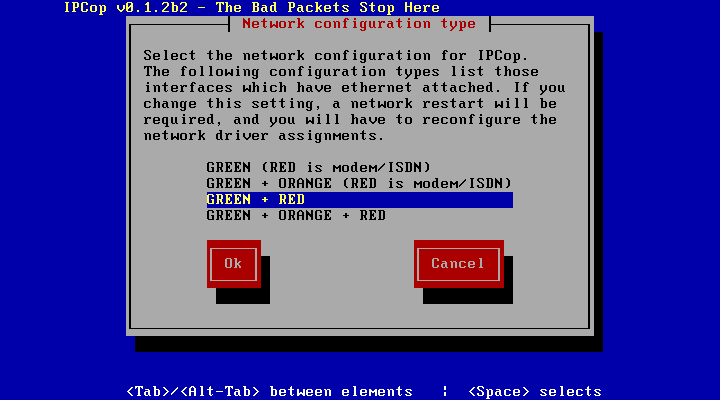

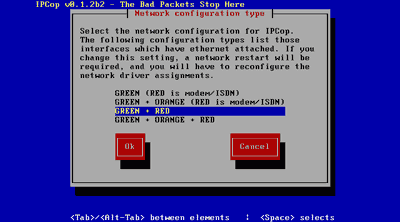

2.17

Unless you're using a modem to dial-up the Internet, choose GREEN + RED, then select OK.

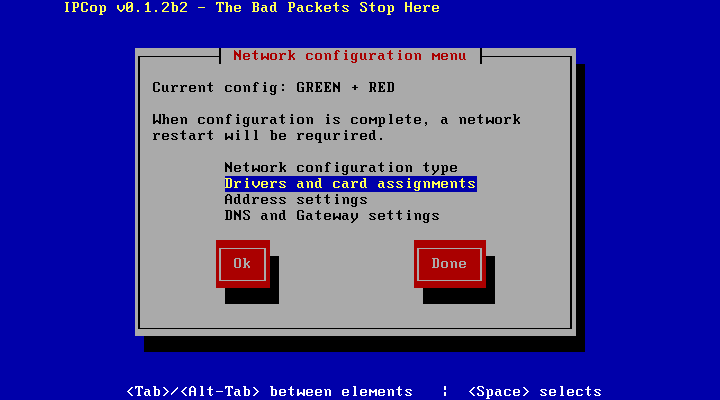

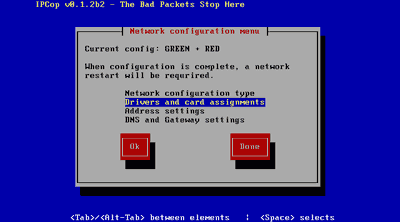

2.18

Now select Drivers and card assignments.

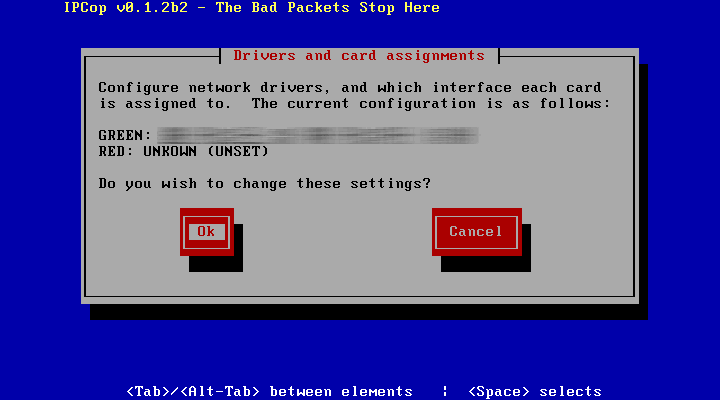

2.19

As you can see, only the first adapter is automatically assigned to the GREEN (inside) interface. Select OK to change the RED assignment.

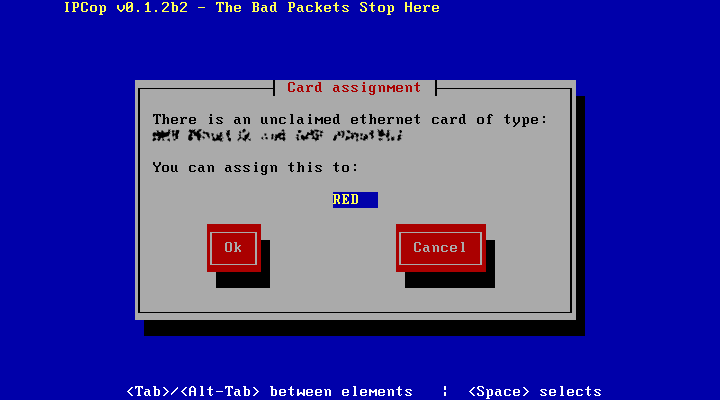

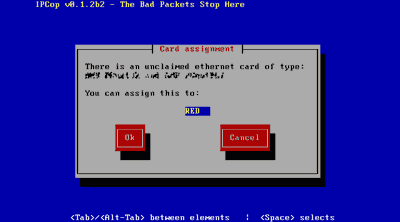

2.20

If your second card has been detected properly, you'll get the option of assigning it to the RED (outside) interface. Select OK.

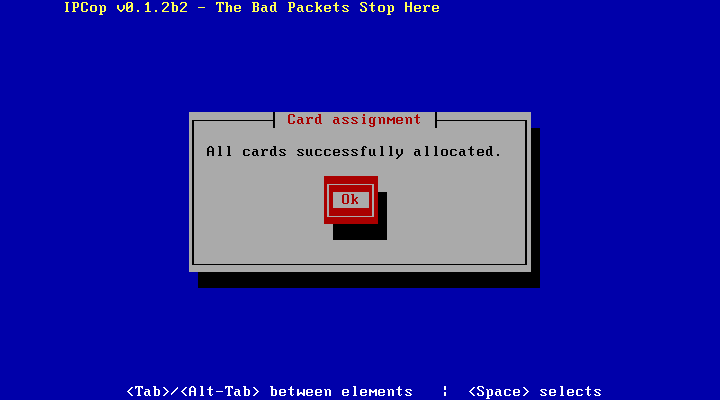

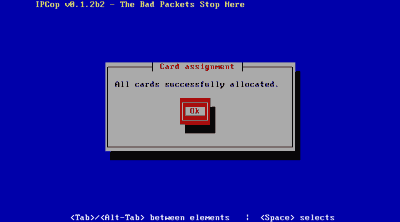

2.21

This message should give you a warm feeling because it means were nearly done.
